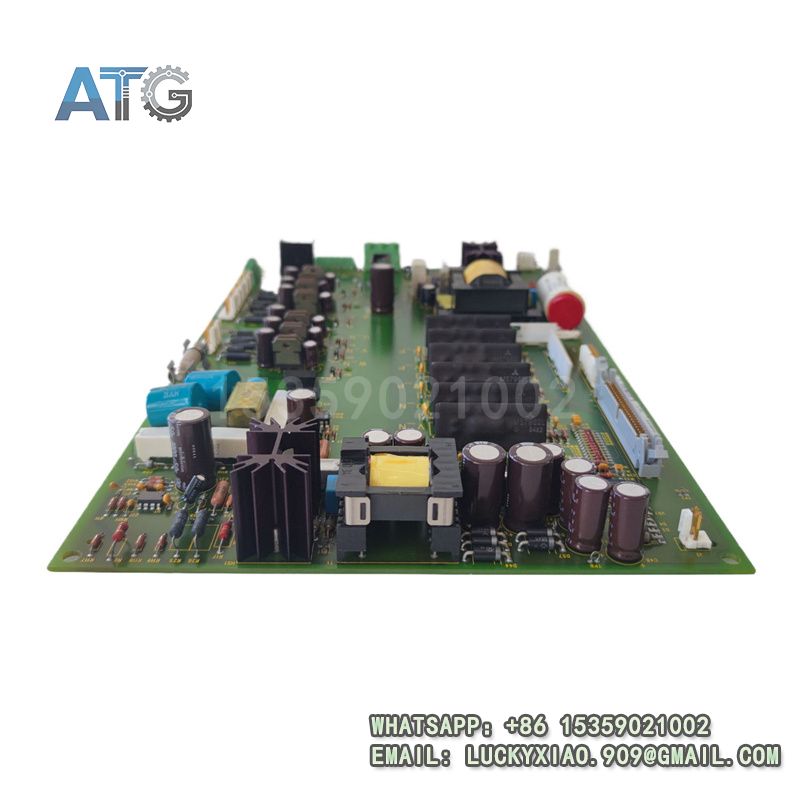

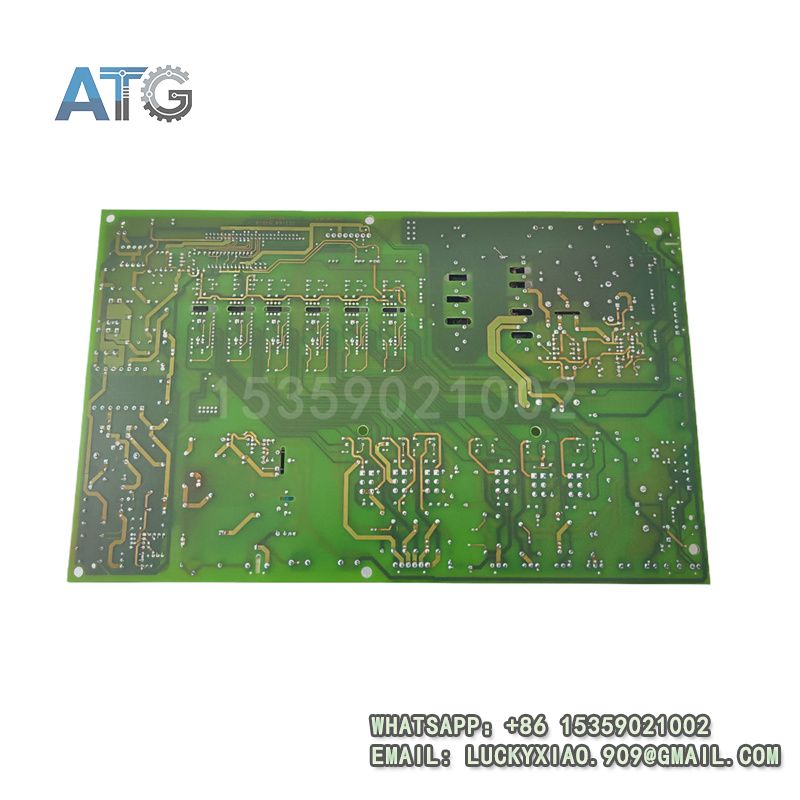

1336-BDB-SP79D Allen-Bradley Product Introduction
- Model: 1336-BDB-SP79D
- Brand: Allen-Bradley (Rockwell Automation)
- Series: Allen-Bradley 1336 Series
- Core Function: Amplifies control signals for IGBT switches
- Type: Gate Driver Board (PCB)
- Key Specs: 575 VAC, 400 HP, F-frame
- Supply Status: In Stock
- Stock: 5
- Warranty: 1 year
- Ship From: China
1336-BDB-SP79D
Product System Introduction
The 1336-BDB-SP79D is a replacement gate driver board designed for Allen-Bradley 1336 Series drives, including 1336 FORCE, PLUS II, PLUS and IMPACT models with F-frame rating. It is installed between the main control board and the drive chassis, acting as a key component to transfer and amplify low-power control signals into high-power inputs for IGBT switches, ensuring stable operation of the drive and connected motors. The product features high reliability, strong compatibility and built-in protection functions (overcurrent, overvoltage) to safeguard the drive system and motors.
Usage Instructions
- Mount the board on the gate driver mounting plate using 8 factory-supplied stand-off screws, fastened clockwise.
- Connect jumper connectors (J2 to J13) to complete circuit connections between board surface connectors.
- Connect the high-voltage auxiliary input terminal and terminals TB20, TB21 to the control module respectively.
- Ensure the drive power is turned off before installation or replacement to avoid electrical hazards.
- It is used as a replacement part when the original gate driver board of the 1336 Series drive is damaged.
