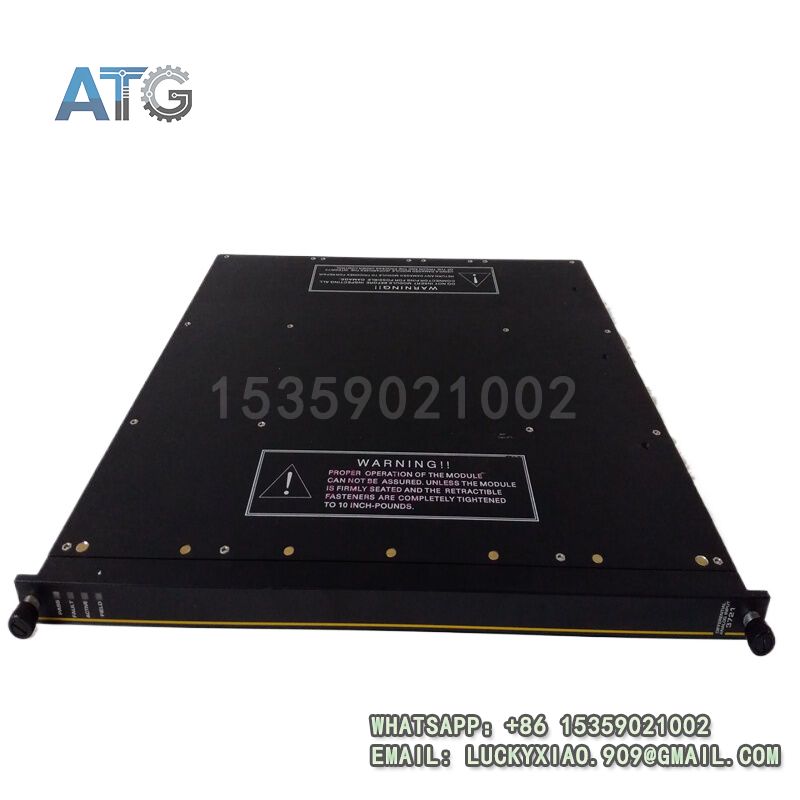

TRICONEX 3721 Product Introduction
· Brand: TRICONEX
· Model: 3721
· System: Triconex Safety Instrumented System (SIS) with Triple Modular Redundancy (TMR) architecture
· Product Name: Digital Input/Output Module
· Input Voltage: 24V DC
· Number of Channels: 16 Channels
· Communication Protocol: Modbus RTU
TRICONEX 3721
Product System Introduction
The TRICONEX 3721 is a core module of the Triconex SIS, mainly used for collecting and controlling on-site digital signals. It features high reliability and anti-interference ability, suitable for harsh industrial environments. The Triconex system also includes other models such as 3703E, 3805E, 3604E, 4108 and 4400. These modules work together to form a complete industrial automation control and safety protection system.
Compatibility Classification (Three Levels)
- Drop-in Replacement: Hardware interface, firmware and configuration are fully compatible, no any modification required.
- Software Compatible: Hardware interface is the same, but program re-download or firmware upgrade is needed.
- Hardware Modification Required: Wiring modification, terminal replacement or rack adjustment is required.
TRICONEX 3721
Replacement Examples (TRICONEX Models)
| Original Model | Replacement Model | Compatibility | Main Differences | Modification Content | Cost Impact |
|---|---|---|---|---|---|
| TRICONEX 3721 | TRICONEX 3721E | ✅ Drop-in Replacement | Enhanced anti-interference performance, unchanged channels and voltage | None (firmware ≥V6.0 required for old versions) | +18% |
| TRICONEX 3721 | TRICONEX 3722 | ✅ Drop-in Replacement | Added self-diagnostic function, same basic parameters | None | +22% |
| TRICONEX 3721 | TRICONEX 3703E | ⚠️ Software Compatible | Converted to isolated analog input module, 16 channels, 0-5/0-10VDC | Recompile and download the project in Triconex Configuration Software | +35% |
| TRICONEX 3721 | TRICONEX 3805E | ❌ Hardware Modification Required | Converted to analog output module, 8 channels, 4-20mA | Rewire, replace terminals and adjust rack installation | +180% |
Recommended Other TRICONEX Product Models
In addition to the TRICONEX 3721, the brand provides a variety of modules to meet different industrial automation needs, with the following key models and their functions:
- TRICONEX 3703E: Isolated analog input module, 16 channels, supporting 0-5VDC and 0-10VDC input, with TMR architecture for high reliability, suitable for collecting analog signals in harsh environments[4].
- TRICONEX 3805E: Analog output module, 8 channels, 4-20mA DC coupled with common loop, used to output analog control signals to on-site actuators[4].
- TRICONEX 3604E: Digital output module, 16 channels, 24VDC optically isolated, non-common, with TMR structure, suitable for controlling on-site digital output devices.
- TRICONEX 4108: Enhanced Intelligent Communication Module (EICM), non-isolated type, used to realize communication between the Triconex system and other industrial devices, improving system integration capability.
- TRICONEX 4400: Safety Management Module (SMM), the core of the Triconex safety system, responsible for system safety monitoring, fault diagnosis and emergency response, ensuring the safe operation of the entire system.
