Description
- Input Voltage: 24V DC (Allowable Fluctuation Range: 20.4V DC – 28.8V DC)
- Number of Channels: 16 channels, supporting differential input
- Communication Protocol: Modbus RTU, supporting RS-485 interface (baud rate: 9600-115200 bps)
- Input Type: Digital Input (DI), dry contact/voltage input compatible
- Response Time: Maximum 5ms (from input signal change to communication output)
- Operating Temperature: -40℃ ~ +75℃ (Industrial Grade Wide Temperature)
- Protection Level: IP20 (DIN Rail Mount, Dust and Splash Proof)
- Power Consumption: Typical 4.5W, Maximum 6.5W
- Mounting Method: 35mm Standard DIN Rail Mount
- Isolation Voltage: 2500V AC (input to power supply, input to communication)
- MTBF: Mean Time Between Failures ≥ 120,000 hours

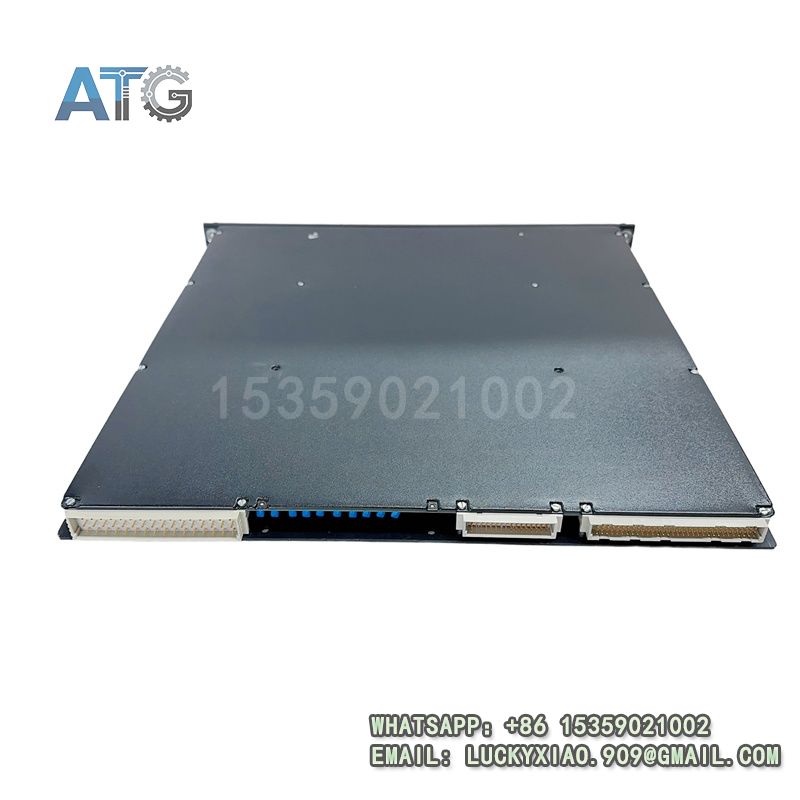

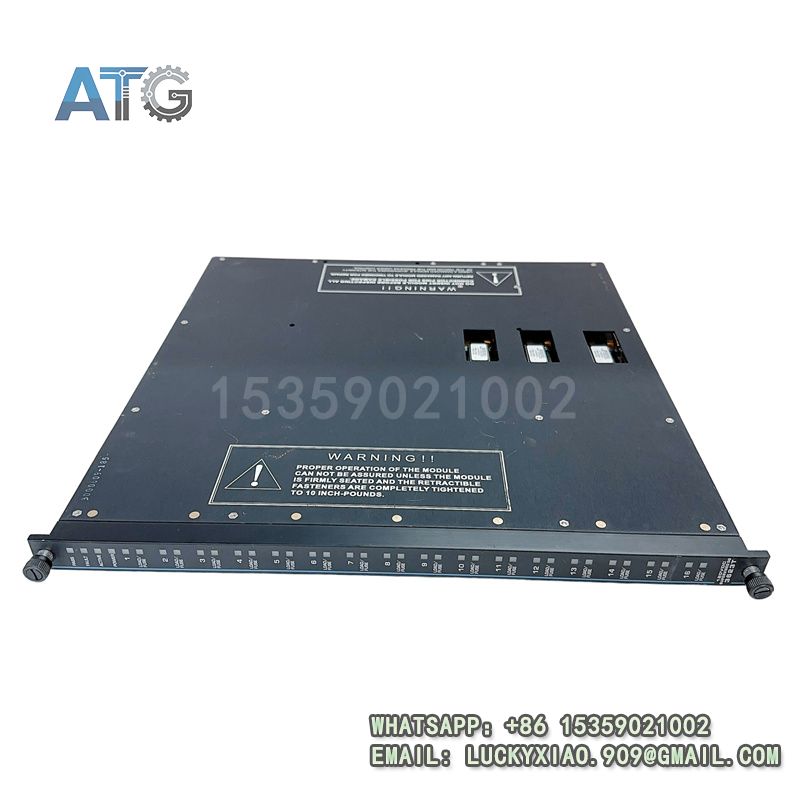

TRICONEX 3623T
Compatibility Classification (Three Levels):
- Drop-in Replacement: Hardware interface, firmware, and configuration are fully compatible; no any modifications required.
- Software Compatible: Hardware interface is the same, but program re-download or firmware upgrade is required.
- Hardware Modification Required: Wiring modification, terminal replacement, or rack adjustment is needed.
Replaceable Models:
✅ Drop-in Replacement (No Modifications Required)
- TRICONEX 3623T → TRICONEX 3623T-R
- Differences: Industrial reinforced version, enhanced anti-interference performance, and extended service life; all other parameters are fully compatible.
- Note: Firmware version ≥ V3.2 is required; old firmware versions can be upgraded directly without additional operations.
- Price: Approximately 16% higher than the original model.

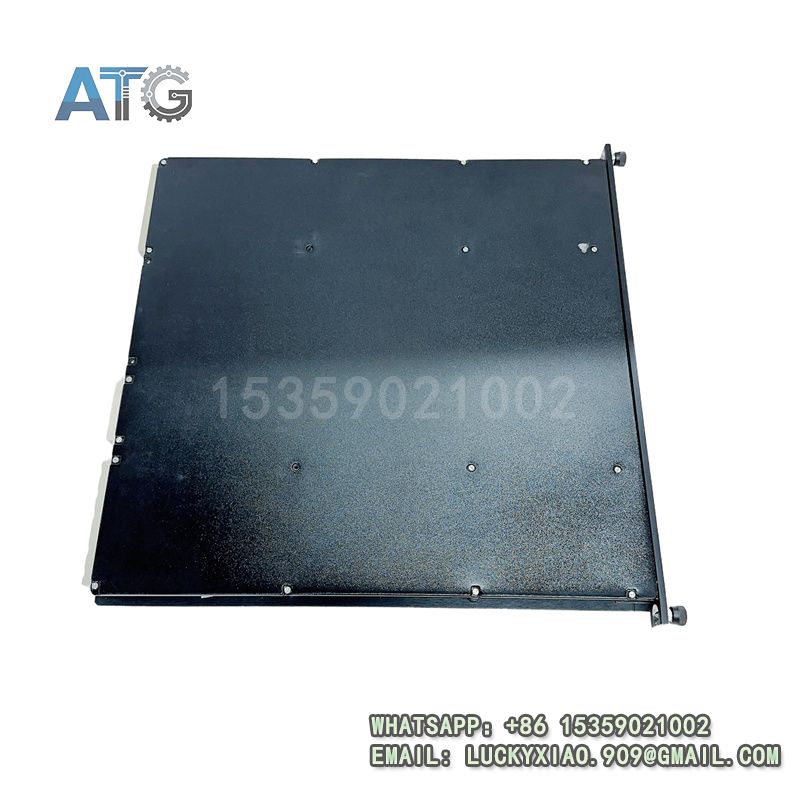

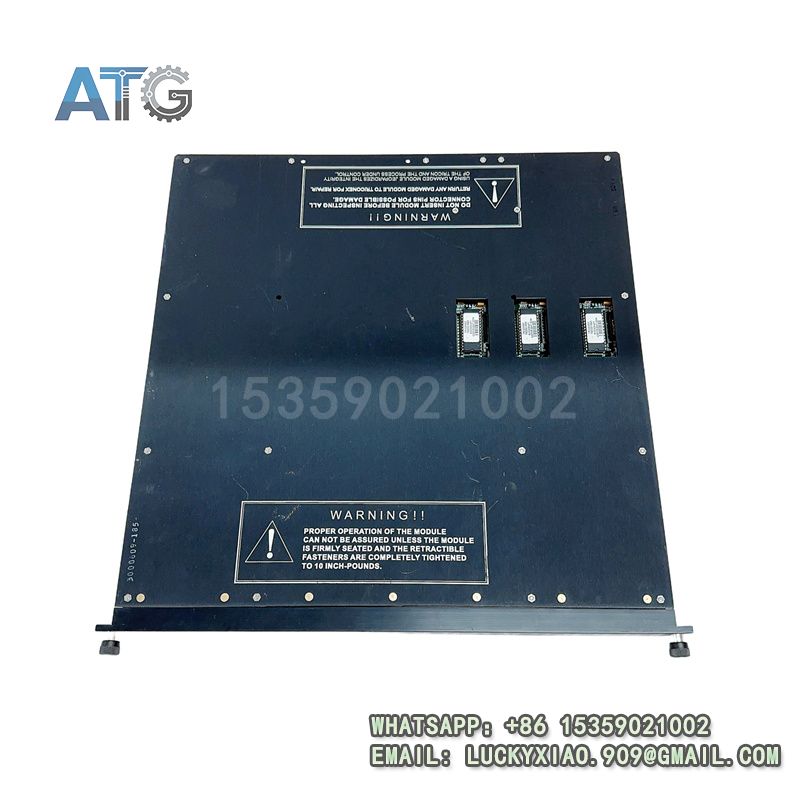

TRICONEX 3623T
⚠️ Software Compatible (Reconfiguration Required)
- TRICONEX 3623T → TRICONEX 3624T
- Differences: Enhanced data processing speed (improved by 40%), added fault self-diagnosis function; hardware interface is consistent with the original model.
- Steps:
- Export the engineering file of TRICONEX 3623T.
- Create a new engineering file for TRICONEX 3624T in the configuration software.
- Import the original engineering parameters and recompile the program.
- Download the compiled program to the new module and restart it.
- Workload: About 0.5-1 day, depending on the complexity of the program.
❌ Hardware Modification Required (Not Recommended)
- TRICONEX 3623T → TRICONEX 4623T
- Reason: It belongs to a new generation of product lines, with different rack specifications, terminal definitions, and programming environments; it is not compatible with the original hardware and software.
- Cost: Need to replace the entire rack, rewire all terminals, and rewrite the program; the total cost is more than 120% higher than the original model.
- Recommendation: Not recommended unless the entire control system is upgraded.
