Description
Product Brief Introduction
The GE IS420UCSBH1A is an enhanced standalone controller module under GE’s Mark VIe/Mark VIeS control system series. It is mainly designed for complex industrial automation scenarios, such as large-scale turbine control, power plant auxiliary system control, and petrochemical process regulation. As an upgraded model of the UCS series, it has stronger data processing capabilities and higher compatibility, serving as a core computing unit to execute complex control logic, realize real-time data acquisition and analysis, and ensure the stable and efficient operation of industrial equipment. Its industrial-grade structural design enables it to adapt to harsh on-site environments, and it can seamlessly cooperate with other GE Mark VIe series modules to form a complete control system.

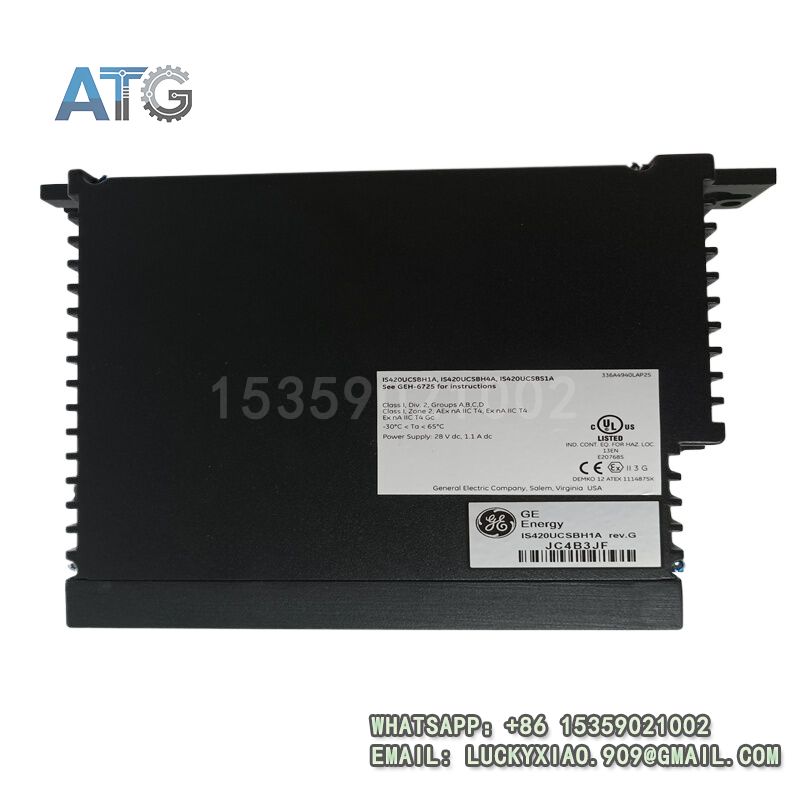

- IS420UCSBH1A
Product Technical Parameters
- Manufacturer: General Electric (GE)
- Product Type: Enhanced Standalone Controller Module
- Series: Mark VIe / Mark VIeS Control System
- Microprocessor: Intel EP80579, 600 MHz (alternative: MPC7538F)
- Operating System: QNX Neutrino Real-Time Operating System
- Power Supply: 18-30 V DC (nominal: 24 V DC, 28 V DC); Maximum Current: 1.5 A DC
- Power Consumption: Approximately 50 W
- Operating Temperature: -40°C to 70°C
- Storage Temperature: -55°C to 85°C
- Relative Humidity: 5% – 95% (non-condensing)
- Weight: Approximately 0.5 kg
- Dimensions: 176 mm × 144 mm × 43 mm
- Communication Interfaces: Modbus RTU, Profibus DP, RS-232
- I/O Points: 32 Digital Inputs, 8 Analog Inputs
- Protection Level: IP66
- Storage: Built-in Flash Memory
- Certifications: UL DEMKO 12 ATEX 1114875X, UL E207685
- Installation Method: Panel-mounted or DIN rail-mounted

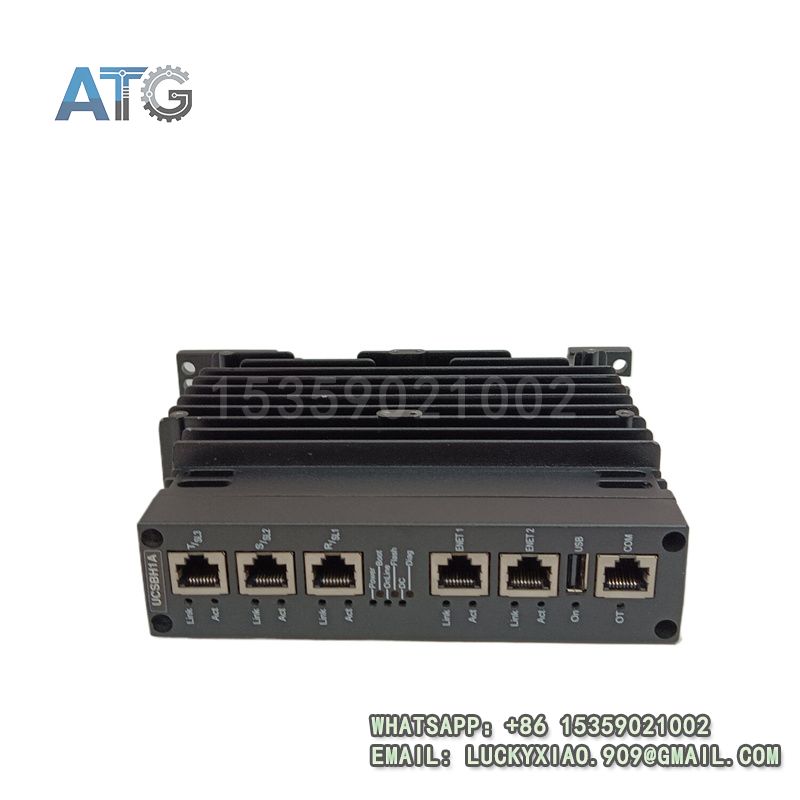

- IS420UCSBH1A
FAQs (Reasons for Selection & Key Info)
1. Q: What is the weight of the GE IS420UCSBH1A?A: Approximately 0.5 kg. Its lightweight design makes it easy to install in various industrial control cabinets, whether panel-mounted or DIN rail-mounted, and it can adapt to different layout requirements without occupying too much space.
2. Q: What are the core technical parameters of this product?
A: Its core parameters include a 600 MHz Intel EP80579 microprocessor, QNX Neutrino real-time operating system, 18-30 V DC power supply, -40°C to 70°C operating temperature, 32 digital inputs and 8 analog inputs, IP66 protection level, and approximately 0.5 kg weight.
3. Q: Why choose the GE IS420UCSBH1A?
A: Firstly, it has enhanced processing capabilities, which can efficiently handle multi-task parallel operations and meet the control needs of complex industrial scenarios.
Secondly, it has high environmental adaptability and protection level, ensuring stable operation in harsh industrial environments such as high and low temperatures and humidity. Thirdly, it supports multiple communication protocols and has rich I/O interfaces, facilitating system integration and data transmission with other equipment. Finally, it has authoritative safety certifications and good compatibility with GE’s Mark VIe series, reducing system configuration and later maintenance costs.

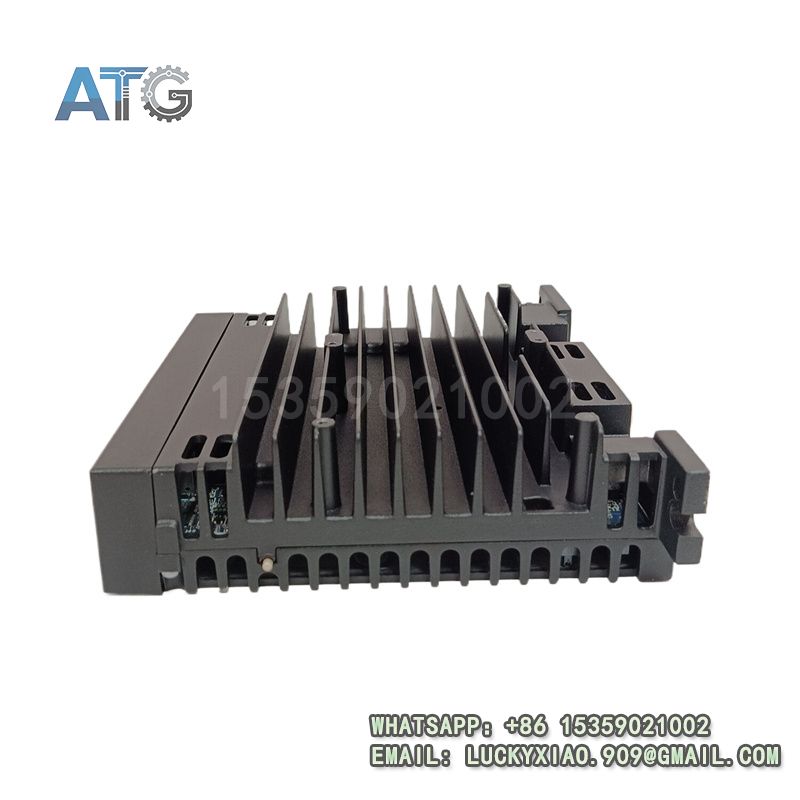

- IS420UCSBH1A
