Description
IS220UCSAH1A Product Brief Introduction
The IS220UCSAH1A is a high-performance central control unit belonging to GE’s Mark VIe control system series. It is mainly applied in the control of large rotating equipment (such as gas turbines and steam turbines) and key industrial processes in power, petrochemical and metallurgical industries, undertaking core tasks including logical operation, data processing and command distribution. With a compact design and advanced control technology, it integrates rich control algorithms and communication interfaces, supporting complex sequence control and real-time monitoring. Its modular design and redundant architecture ensure high reliability, enabling stable operation in harsh industrial environments and seamless coordination with other Mark VIe series modules.
-

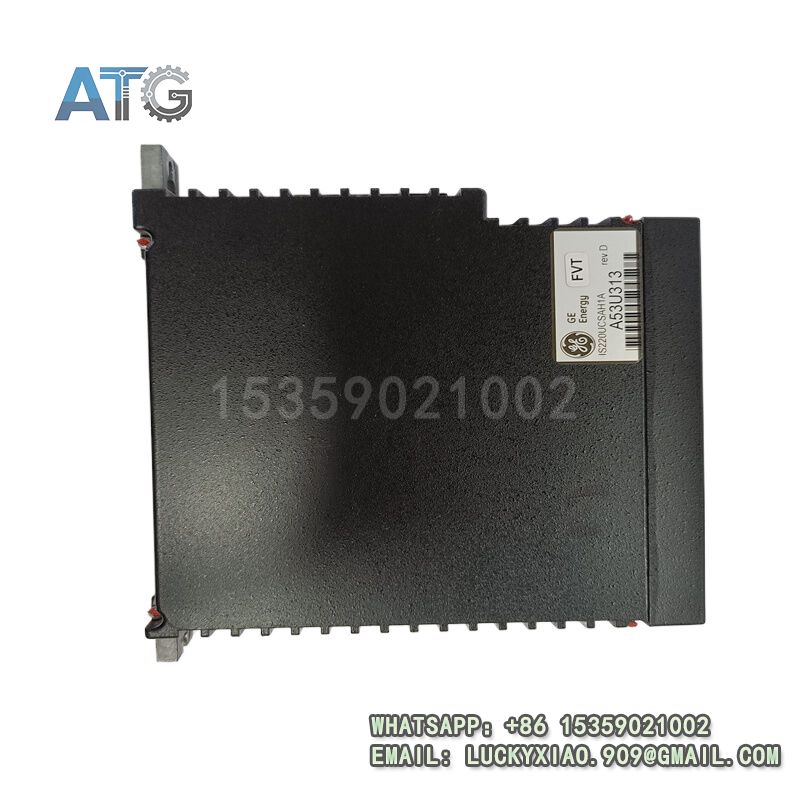

IS220UCSAH1A
- IS220UCSAH1A
IS220UCSAH1A Product Technical Parameters
-
- Manufacturer: General Electric (GE)
- Product Type: Central Control Unit / Acoustic Monitor Processor
- Series: Mark VIe / Mark VIeS Control System
- Microprocessor: Freescale 8349, 667 MHz
- Operating System: QNX Neutrino
- Power Supply: 18-36 V DC, typical power consumption 12 W; optional 24V DC (±15%) with dual power redundancy input
- Operating Temperature: -40°C to 70°C
- Storage Temperature: -55°C to 85°C
- Relative Humidity: 5% – 95% (non-condensing)
- Weight: Approximately 1.2 kg
- Communication Interfaces: 2 Gigabit Ethernet interfaces, 1 RS-485 Modbus interface, 1 USB 2.0 interface
- Memory: 8GB Flash (program memory), 4GB DDR3 (data memory)
- Control Cycle: As low as 1ms
- Protection Level: Conformal coated PCB for corrosion resistance
- Certifications: UL / CE / CSA
- Installation Method: 35mm DIN rail mounting
-

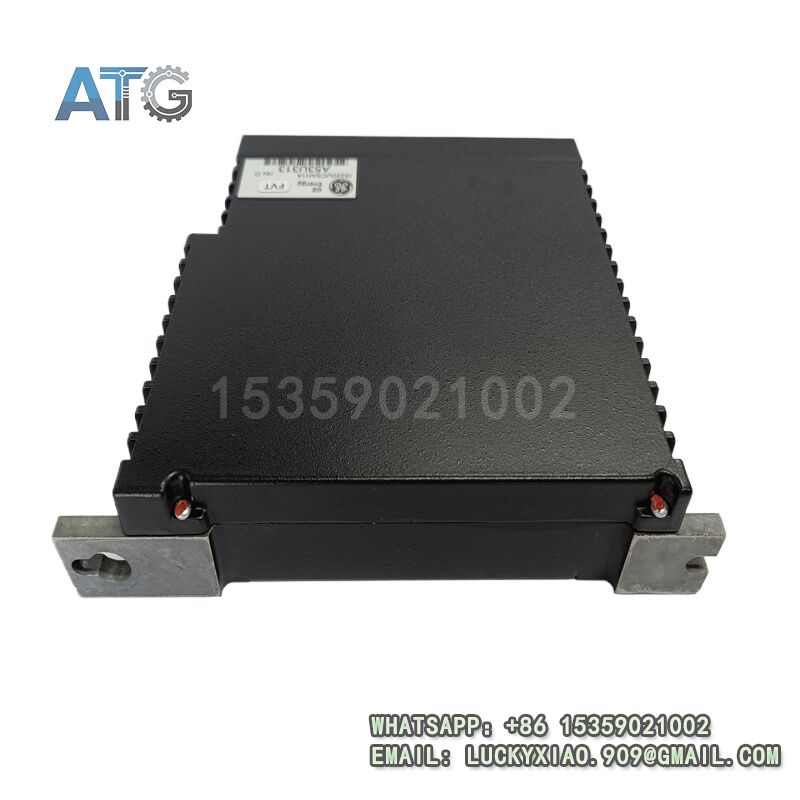

IS220UCSAH1A
- IS220UCSAH1A
FAQs (Reasons for Selection & Key Info)
1. Q: What is the weight of the IS220UCSAH1A?A: Approximately 1.2 kg. Its lightweight and compact design facilitates easy installation on 35mm DIN rails in control cabinets, adapting to various layout requirements and saving installation space.2. Q: What are the core technical parameters of this product?A: Its core parameters include a 667 MHz Freescale 8349 microprocessor, QNX Neutrino operating system, 18-36 V DC power supply, -40°C to 70°C operating temperature, 8GB Flash and 4GB DDR3 memory, multiple communication interfaces, and approximately 1.2 kg weight.3. Q: Why choose the IS220UCSAH1A?A: Firstly, it has excellent processing performance, with a control cycle as low as 1ms to meet high-precision synchronous control needs. Secondly, it features high reliability, with redundant architecture and conformal coated PCB to ensure stable operation in harsh and corrosive industrial environments. Thirdly, it integrates rich interfaces and control algorithms, facilitating system integration and flexible application in various industrial scenarios. Finally, it has relevant safety certifications and seamless compatibility with GE Mark VIe series modules, reducing configuration and maintenance costs.
-
IS220UCSAH1A
- GE IS220UCSAH1A
Recommended Same-Series Models (GE)
IS220UCSBH1A: Enhanced processing capability, suitable for more complex industrial control scenarios requiring multi-task parallel processing.
IS220UCSBS1A: Safety controller complying with IEC 61508 standards, applicable to safety instrumented systems with high safety requirements.
IS220PAMSG1A: Acoustic monitoring module, used for real-time condition monitoring and vibration analysis of gas turbines.
IS220PVIBH1A: Vibration data processing module, supporting predictive maintenance of rotating machinery.
IS220PRTDH1A: Temperature measurement module adopting RTD technology for accurate on-site temperature detection.
IS220STAIH2A: Analog input module, stably collecting and transmitting analog signals from industrial equipment.
IS220TBAIH1CDD: Analog signal terminal board, matching controllers to ensure stable signal transmission.
IS220UCSCH1A: High-integration control module, supporting connection of up to 16 I/O modules for large-scale control systems.
IS220PAMSH1A: High-precision acoustic monitoring module, suitable for high-sensitivity equipment condition detection.
IS420ESWBH3A: Industrial Ethernet switch module, providing high-speed network support for Mark VIe series control systems.
