ICS TRIPLEX T8461 Product Introduction
- Model: T8461
- Brand: ICS TRIPLEX (ICS Triplex Inc.)
- Series: ICS TRIPLEX T8000 Safety & Control Series
- Core Function: Pulse counting & digital signal processing
- Type: I/O Module (Pulse Count Module)
- Key Specs: 24VDC, 1MHz, TMR redundant
- Supply Status: in stock
- Stock: 14
- Warranty: 18 months
- Ship From: United States

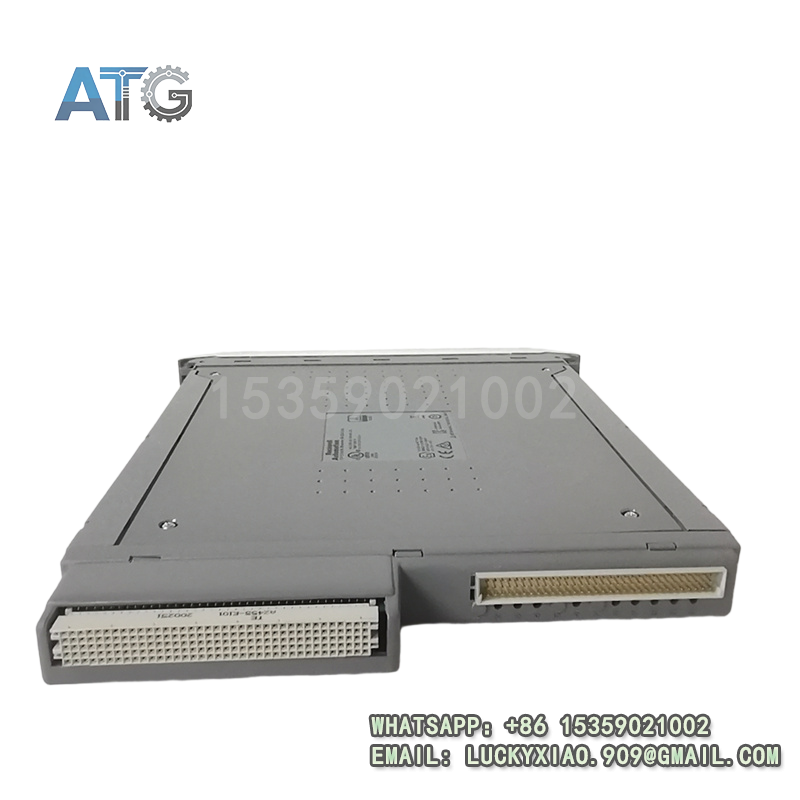

ICS TRIPLEX T8461
Product System Function Introduction
1. Applicable SystemThis module is a dedicated pulse count module for ICS TRIPLEX T8000 Safety & Control Series, a key component for high-precision industrial control. It’s not a universal counting module—instead, it’s tailor-made for the T8000 series, perfectly matching the system’s TMR redundant design to ensure high reliability.Q: What other modules can it cooperate with in the T8000 series? A: It works seamlessly with common modules in the same series, here are the most practical ones:
- T8110B (Digital Input Module, 16 channels, 24VDC)
- T8431 (Analog Input Module, 8 channels, 4-20mA)
- T9110 (High-level Processor Module for T8000 Series)
- T8403 (Digital Input Module, 16 channels, TMR redundant)
It’s mainly used in industrial sites that require high-precision pulse counting, such as oil and gas, chemical, and power plants where accurate signal counting is critical for safety and efficiency.2. System RoleTo be honest, this module is like the “precision counter” of the T8000 series system. It specializes in collecting and processing pulse signals from on-site equipment, with a maximum counting frequency of 1MHz—way faster than ordinary pulse modules.There’s one point to note: it adopts TMR (Triple Modular Redundancy) architecture, which is more reliable than non-redundant modules. Unlike some low-quality modules that easily lose count or make errors, this one uses triple redundancy to ensure counting accuracy, even in harsh industrial environments with electromagnetic interference.Q: Is it suitable for safety-critical counting scenarios? A: Absolutely! Its TMR design and high-precision counting ability make it ideal for SIL 3 safety systems, which is why it’s widely used in hazardous industrial sites.3. Working PrincipleThe working principle is focused on precision, but it’s not complicated to understand. Let’s break it down clearly:
- First, it is powered by 24VDC to ensure continuous and stable operation, adapting to small power fluctuations on site.
- Then, it receives pulse signals from on-site equipment, supporting a maximum counting frequency of 1MHz for high-precision data collection.
- Next, its TMR architecture processes the pulse signals triple times, eliminating errors and ensuring counting accuracy.
- Finally, it transmits the processed counting data to the T8000 series processor via the system bus for further analysis and control.
It also has built-in self-diagnostic and line monitoring functions… once a fault or wiring issue is detected, it will send an alarm immediately, making troubleshooting a breeze.

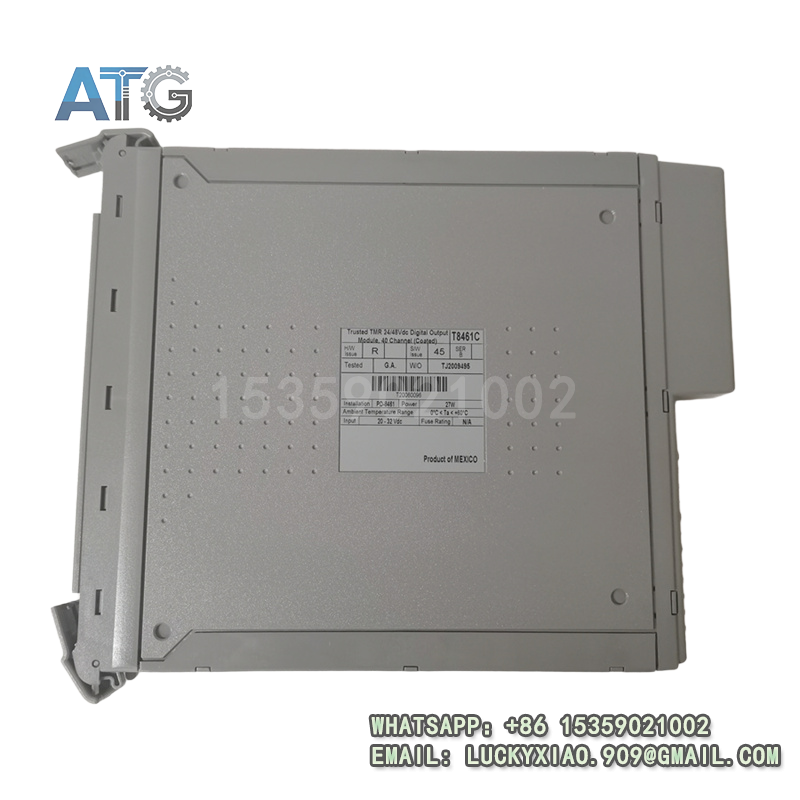

ICS TRIPLEX T8461
Physical Parameters (Size & Weight)
Honestly, this module is designed to be compact and sturdy, fitting perfectly into the standard rack of the T8000 series system. It’s not bulky at all, which is very practical for crowded control cabinets. Here are the key physical details:
- Dimensions: 86mm × 120mm × 142mm (similar to a small notebook, easy to install)
- Weight: Approximately 1.2kg (light enough for single-person installation)
- Mounting: ICS TRIPLEX T8000 standard rack mounting (no extra adapters required)
- Enclosure Material: Industrial-grade metal shell (tough, anti-collision and anti-electromagnetic interference)
- Protection Level: IP20 (cabinet mounting, effective dust-proof)
- Indicator Lights: LED indicators (power, operation, fault, counting status—clear at a glance)
Technical Specifications
Let’s talk about the technical specs that are really useful for actual use—no fancy jargon, just practical content. It runs on 24VDC ±10% voltage, which can handle small power fluctuations common in industrial sites.Its maximum counting frequency reaches 1MHz, supporting high-precision pulse collection—more reliable than modules with lower frequency limits. A few more key points:
- Operating Temperature: -40℃ ~ 70℃ (works normally in extremely cold and hot workshops)
- Redundancy: TMR (Triple Modular Redundancy) architecture for high reliability
- Function: Built-in line monitoring to detect open and short circuit faults
- Compatibility: Fully compatible with all modules of ICS TRIPLEX T8000 Series
ICS TRIPLEX T8461
Application Industries
It’s widely used in various industrial fields that require high-precision pulse counting and high reliability, especially those relying on the ICS TRIPLEX T8000 system. Here are the main application scenarios:
- Oil & Gas Industry: Wellhead flow counting, pipeline pulse monitoring, safety valve status counting
- Chemical Industry: Reactor pulse control, material feeding counting, hazardous material processing monitoring
- Power Industry: Turbine speed pulse counting, thermal power plant auxiliary system monitoring
- Metallurgical Industry: Steel mill material conveying counting, furnace temperature pulse monitoring
For example, in an oilfield’s pipeline monitoring system, this module counts the pulse signals of the flow meter, accurately recording the oil flow rate—if the flow is abnormal, the system will trigger an alarm in time, avoiding waste or safety hazards.
Usage Instructions
Using this module isn’t difficult, but there are a few common mistakes to avoid—let me remind you carefully.
- Installation: Mount it on the T8000 standard rack, ensure the connection is firm—loose connections will cause pulse signal loss or counting errors.
- Wiring: Use shielded cables for pulse signal lines, separate power cables from signal lines to avoid electromagnetic interference (I’ve seen many counting faults caused by wrong wiring).
- Configuration: Set counting parameters and line monitoring functions via AADvance configuration software—don’t skip this step, or the module won’t work properly.
