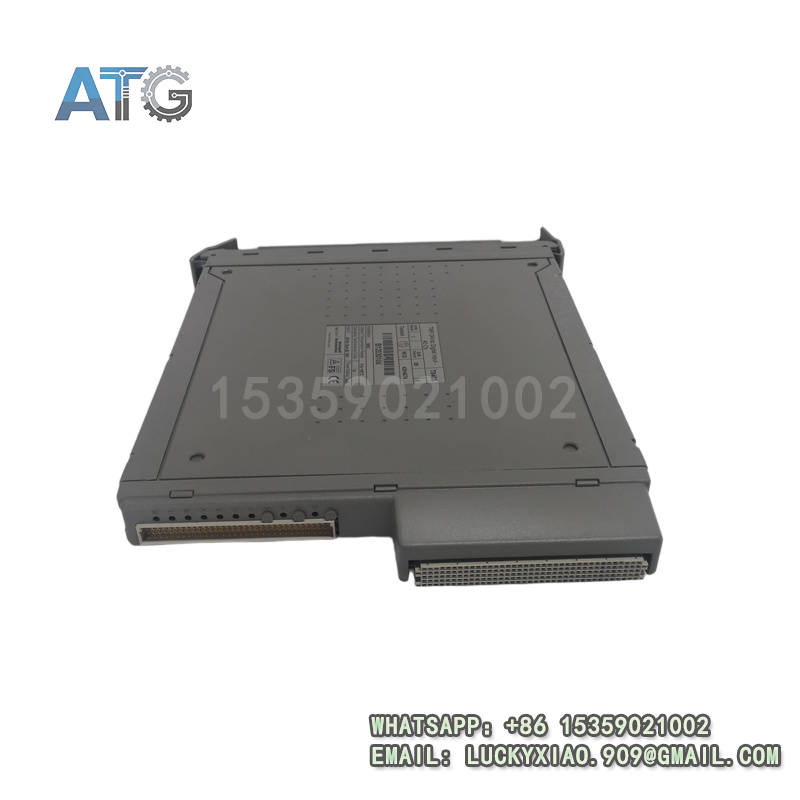

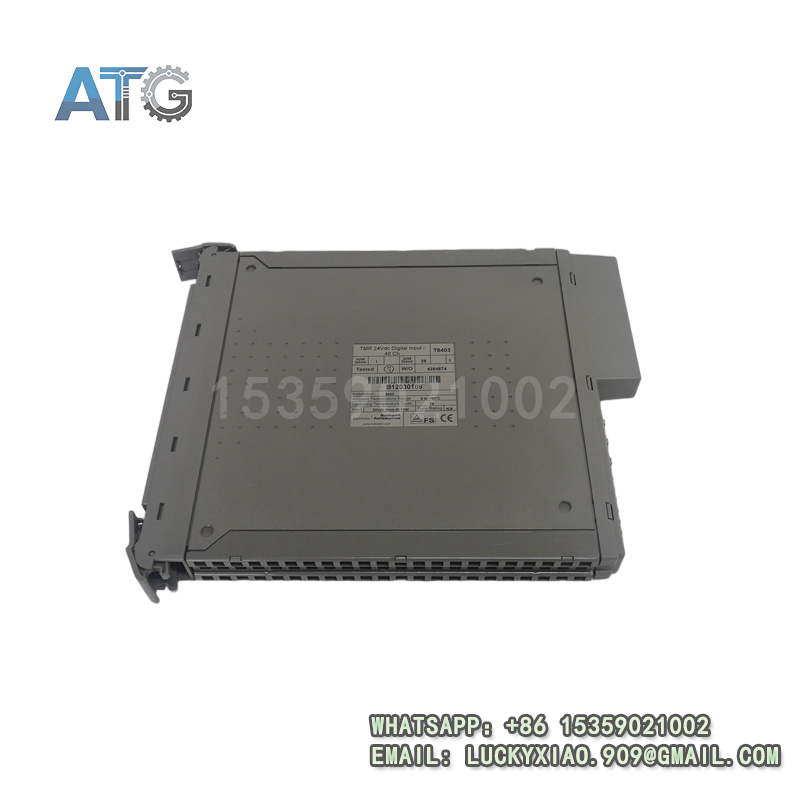

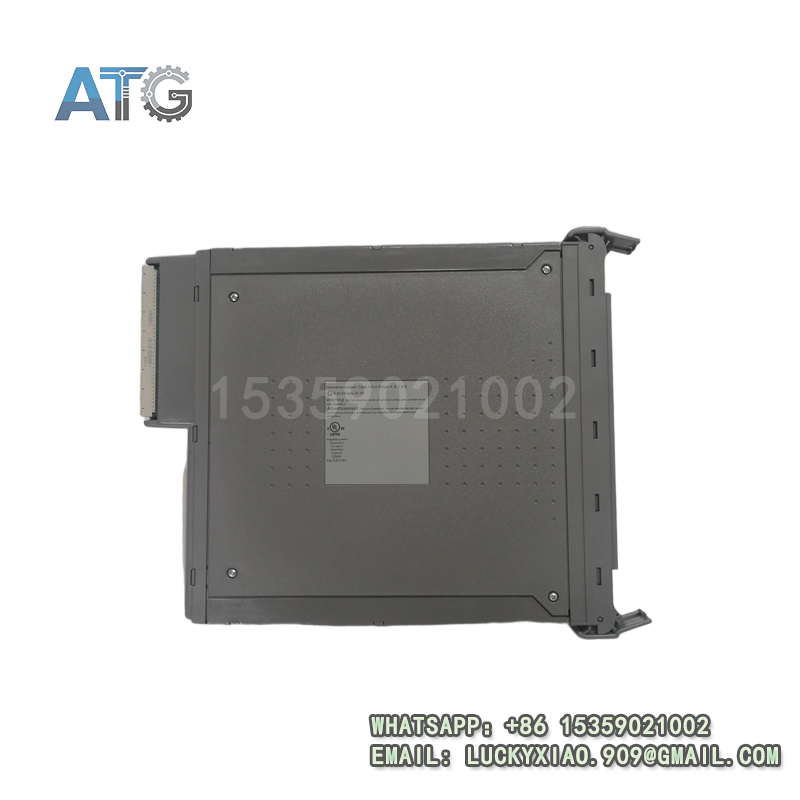

ICS TRIPLEX T8403 Product Introduction
- Model: T8403
- Brand: ICS TRIPLEX (ICS Triplex Inc.)
- Series: ICS TRIPLEX T8000 Safety & Control Series
- Core Function: Digital I/O signal multiplexing & transmission
- Type: I/O Module (Multiplex I/O Module)
- Key Specs: 24VDC, 16 channels, RS-422
- Supply Status: in stock
- Stock: 19
- Warranty: 18 months
- Ship From: United States
ICS TRIPLEX T8403
Applicable System
This module is a dedicated multiplex I/O module for ICS TRIPLEX T8000 Safety & Control Series, a key component for industrial automation and safety control systems. Honestly, it’s not a universal I/O module—instead, it’s tailor-made to integrate seamlessly with the T8000 series, especially matching the T9110 high-level processor module and other I/O modules in the same series.It can also work perfectly with the Regent system and ICS remote multiplex I/O units (MIU), serving as a reliable signal bridge between the main control system and remote I/O devices. It’s mainly applied in SIL 3 safety systems that require stable digital signal transmission, widely used in oil and gas, chemical, and power plants where remote I/O control is needed.Q: What specific systems can it be used with? A: It’s mainly used in ICS TRIPLEX T8000 series DCS and safety instrument systems (SIS), and also compatible with Regent systems, especially suitable for scenarios with remote MIU devices that need to transmit digital signals over long distances.
Main Functions
To be honest, this module’s core job is to realize multiplexing, transmission and processing of digital I/O signals—it’s simple but super reliable, acting as a “signal transfer station” between the main system and remote MIU devices.
- Digital I/O multiplexing: It supports up to 512 digital inputs and 256 digital outputs from remote MIU devices, realizing centralized management of multiple signals with one module.
- Remote communication: It is equipped with two isolated RS-422 serial ports, which can connect to remote MIU devices and support multi-point connection and long-distance data transmission.
- Fault self-diagnosis: It can automatically detect module faults, line abnormalities and on-site wiring faults, and report faults through front-panel LED indicators and status variables.
- Isolation protection: There is 1000V electrical isolation between serial ports and between serial circuits and logic circuits, effectively preventing electromagnetic interference and ensuring safe operation.
- Voting function: It supports 2oo2 voting in duplex mode, which improves the reliability of I/O data and is critical for safety-critical industrial scenarios.
There’s one point to note: it can automatically detect on-site output voltage and current, helping technicians quickly identify wiring faults—way more convenient than ordinary multiplex I/O modules.
ICS TRIPLEX T8403
Detailed Technical Specifications
Let’s get down to the specific specs—no fancy jargon, just practical details that matter for on-site use. I’ll list them clearly so you can check at a glance:
- Power Supply: 24VDC ±10%, adapting to small power fluctuations common in industrial sites
- Input/Output Channels: Supports up to 512 digital inputs and 256 digital outputs from remote MIU devices; 16 local digital channels for basic signal interaction
- Communication Interface: 2 isolated RS-422 serial ports, supporting simplex or duplex mode
- Communication Baud Rate: Up to 9200 baud, ensuring stable and efficient data transmission
- Transmission Distance: Up to 4000 feet (1220 meters) when connecting to remote MIU devices
- Isolation Voltage: 1000V electrical isolation between serial ports and between serial circuits and logic circuits
- Operating Temperature: -40℃ ~ 70℃, working normally in extremely cold and hot industrial workshops
- Storage Temperature: -40℃ ~ 85℃, suitable for long-term storage in different environments
- Humidity Range: 5% ~ 95% (non-condensing), adapting to humid industrial sites
- Certification: TÜV certified, risk level 5, no interference
- Control Function: Supports 2oo2 voting in duplex mode for high reliability
- Memory: Dual-port RAM, divided into 4 blocks for configuration, fault reporting, input and output data storage
- Indicator Lights: Front-panel LED indicators for module status, fault status, and serial port send/receive status
- Compatibility: Fully compatible with all modules of ICS TRIPLEX T8000 Series and Regent system
- Fault Detection: Automatically detects on-site wiring faults, short circuits and no power supply faults, and reports through status variables and LED indicators
- Mounting: ICS TRIPLEX T8000 standard rack mounting, suitable for installation in I/O cabinets
