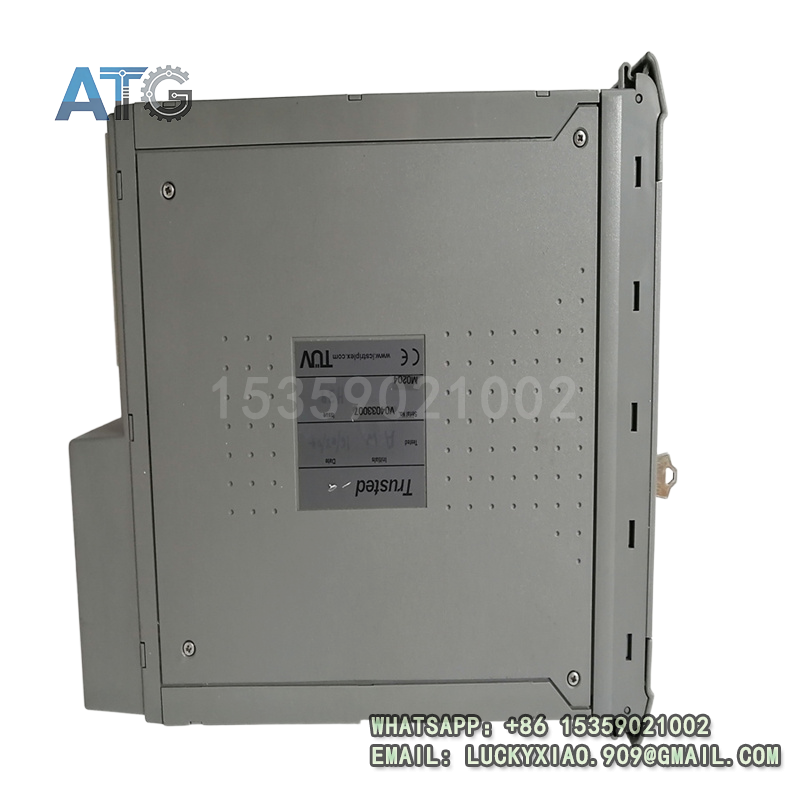

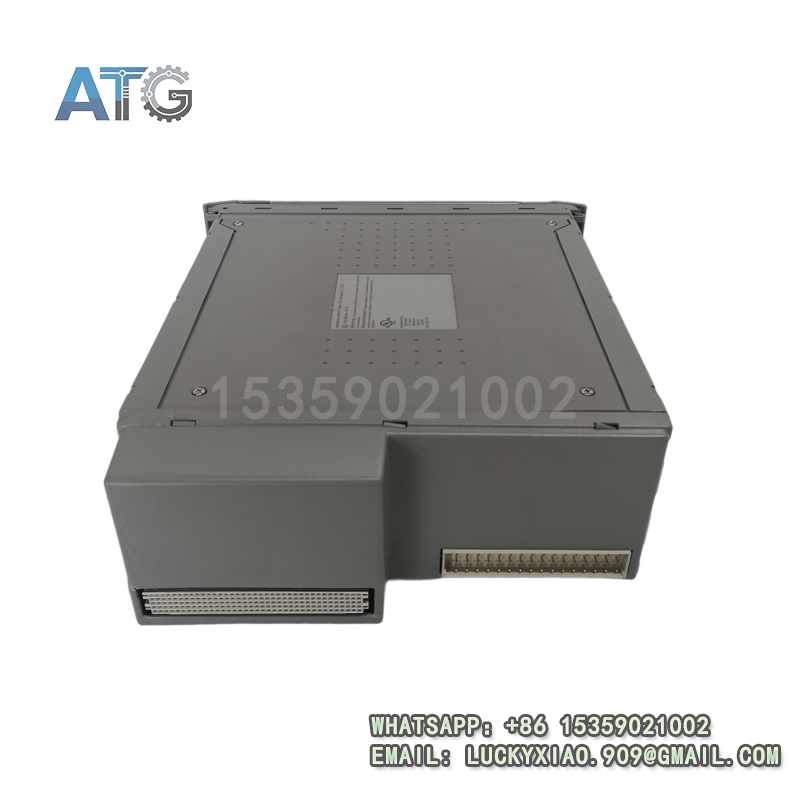

ICS TRIPLEX T8110B Product Introduction
- Model: T8110B
- Brand: ICS TRIPLEX (ICS Triplex Inc.)
- Series: ICS TRIPLEX T8000 Safety & Control Series
- Core Function: Digital input signal receiving & monitoring
- Type: I/O Module (Digital Input Module)
- Key Specs: 24VDC, 16 channels, Modbus TCP
- Supply Status: in stock
- Stock: 16
- Warranty: 12 months
- Ship From: United States
ICS TRIPLEX T8110B
Product System Function Introduction
1. Applicable SystemThis module is a dedicated digital input module for ICS TRIPLEX T8000 Safety & Control Series, a key component for industrial automation control. It’s not a universal I/O module—instead, it’s tailor-made for the T8000 series, ensuring seamless integration with the system’s safety and control functions.Q: What other modules can it cooperate with in the T8000 series? A: It works perfectly with common modules in the same series, here are the most practical ones:
- T8403 (Digital Input Module, 16 channels, 24VDC)
- T8431 (Analog Input Module, 8 channels, 4-20mA)
- T9110 (High-level Processor Module for T8000 Series)
- T8461 (Pulse Count Module, up to 1MHz counting frequency)
It’s mainly used in industrial sites with high safety requirements, such as oil and gas, chemical, and power plants where reliable digital signal monitoring is critical.2. System RoleTo be honest, this module is like the “signal collector” of the T8000 series system. It specializes in receiving and monitoring digital input signals from on-site sensors, converting field switch status into system-compatible signals and transmitting them to the processor module.There’s one point to note: it has high anti-interference performance, which is better than ordinary digital input modules—it can work stably even in harsh industrial environments with complex electromagnetic signals. Unlike some low-quality modules that often have signal distortion, this one ensures the accuracy of digital signal collection, laying a solid foundation for system safety control.Q: Is it suitable for safety-critical systems? A: Absolutely! It’s designed for industrial safety control scenarios, matching the T8000 series’ high-reliability requirements, and can be used in SIL 3 safety systems.3. Working PrincipleThe working principle is simple and practical, but you need to grasp the key steps to use it properly. Let’s break it down clearly:
- First, it is powered by 24VDC to ensure continuous and stable operation.
- Then, it connects to on-site digital sensors via 16 channels, receiving switch status signals in real-time.
- Next, it filters and processes the collected signals to eliminate interference and ensure signal accuracy.
- Finally, it transmits the processed digital signals to the T8000 series processor via Modbus TCP protocol.
It also has built-in self-diagnostic function… once a channel or signal fails, it will send an alarm signal immediately, making it easy for technicians to troubleshoot quickly.
ICS TRIPLEX T8110B
Physical Parameters (Size & Weight)
Honestly, this module is designed to be compact and easy to install, fitting perfectly into the standard rack of the T8000 series system. It doesn’t take up much space, which is very practical for crowded control cabinets. Here are the key physical details:
- Dimensions: 86mm × 120mm × 142mm (similar to a small notebook, easy to install)
- Weight: Approximately 1.0kg (light enough for single-person installation)
- Mounting: ICS TRIPLEX T8000 standard rack mounting (no extra adapters required)
- Enclosure Material: Industrial-grade metal shell (tough, anti-collision and anti-electromagnetic interference)
- Protection Level: IP20 (cabinet mounting, effective dust-proof)
- Indicator Lights: LED indicators (power, operation, fault, channel status—clear at a glance)
Technical Specifications
Let’s talk about the technical specs that are really useful for actual use—no fancy jargon, just practical content. It runs on 24VDC ±10% voltage, which can adapt to small power fluctuations common in industrial sites.It has 16 digital input channels, supporting stable signal collection—more reliable than modules with fewer channels. A few more key points:
- Operating Temperature: -40℃ ~ 70℃ (works normally in extremely cold and hot workshops)
- Communication Protocol: Modbus TCP, fast and stable data transmission
- Signal Type: 24VDC digital switching signal, compatible with most on-site sensors
- Compatibility: Fully compatible with all modules of ICS TRIPLEX T8000 Series
ICS TRIPLEX T8110B
Application Industries
It’s widely used in various industrial fields that require high safety and reliability, especially those relying on the ICS TRIPLEX T8000 system. Here are the main application scenarios:
- Oil & Gas Industry: Wellhead control, pipeline monitoring, digital signal collection of safety valves
- Chemical Industry: Reactor safety control, hazardous material processing, switch status monitoring
- Power Industry: Thermal power plant auxiliary system, turbine control, digital signal acquisition
- Metallurgical Industry: Steel mill furnace control, material feeding switch status monitoring
For example, in an oilfield’s intelligent wellhead control system, this module collects the switch status of the wellhead safety valve and transmits it to the processor—if the valve is abnormal, the system will trigger an alarm and cut off the pipeline in time, avoiding safety accidents.
Usage Instructions
Using this module isn’t difficult, but there are a few common mistakes to avoid—let me remind you carefully.
- Installation: Mount it on the T8000 standard rack, ensure the connection is firm—loose connections will cause signal loss or distortion.
- Wiring: Use shielded cables for signal lines, separate power cables from signal lines to avoid electromagnetic interference (I’ve seen many faults caused by wrong wiring).
- Configuration: Set channel parameters via AADvance configuration software according to on-site needs—don’t skip this step, or the module won’t work properly.
