HONEYWELL CC-PCF901 51405047-175 Product Introduction
- Model: CC-PCF901 51405047-175
- Brand: HONEYWELL (Honeywell International Inc.)
- Series: HONEYWELL Experion PKS C300 Series
- Core Function: Industrial network security protection & monitoring
- Type: Communication Module (Control Firewall Module)
- Key Specs: 24VDC, 8 ports, Ethernet
- Supply Status: in stock
- Stock: 15
- Warranty: 18 months
- Ship From: Europe

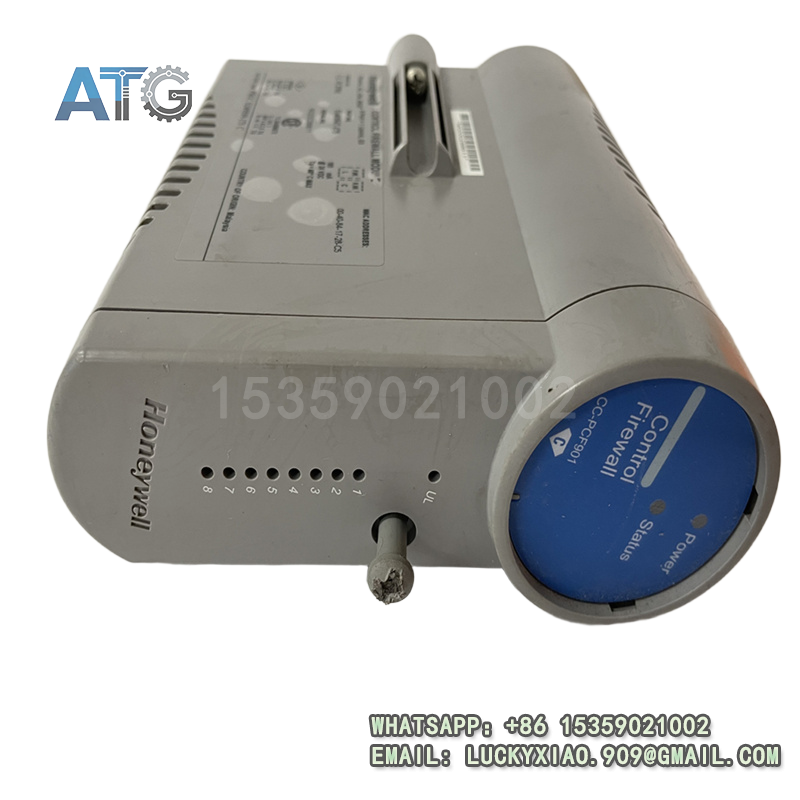

HONEYWELL CC-PCF901 51405047-175
Product System Function Introduction
1. Applicable SystemThis module is a dedicated control firewall module for HONEYWELL Experion PKS C300 Series, a critical security component of the DCS system. It’s not a regular communication module—instead, it’s designed to protect industrial network security, perfectly matching the C300 controller and other system modules.Q: What other modules can it cooperate with in the Experion PKS C300 system? A: It works seamlessly with common modules in the same series, here are the most common ones:
- CC-PCNT01 (C300 Controller Module)
- CC-PAIH01 (Analog Input Module)
- CC-TDOD51 (Digital Output Module)
- CC-PWR01 (Power Supply Module for C300 Series)
It’s mainly used in industrial sites with high network security requirements, such as chemical plants, power stations and oil refineries where DCS system security is crucial.2. System RoleTo be honest, this module is like the “security guard” of the Experion PKS C300 system. It monitors and controls industrial network data traffic, blocks unauthorized access, and intercepts potential network attacks to protect the DCS system from security threats.There’s one point to note: it not only has basic firewall functions but also supports security policy management and traffic monitoring—more comprehensive than simple firewall modules. Unlike some low-end modules that only block basic attacks, this one can record security logs and analyze abnormal traffic, making it easier to investigate security incidents later.Q: Is it necessary for the DCS system? A: Absolutely! In today’s industrial automation, network security is non-negotiable—this module can prevent malicious access and protect the stability of the entire control system.3. Working PrincipleThe working principle is focused on security, but it’s not complicated to understand. Let’s break it down step by step:
- First, it is powered by 24VDC to ensure stable and continuous operation.
- Then, it connects to the industrial network via 8 Ethernet ports, monitoring data traffic in real-time.
- Next, it filters network data according to pre-configured security policies, blocking unauthorized communication.
- Finally, it records network communication and security events, and feeds back abnormal information to the system.
It also has strong anti-interference ability… even in harsh industrial environments with complex signals, it can still maintain stable security protection performance.

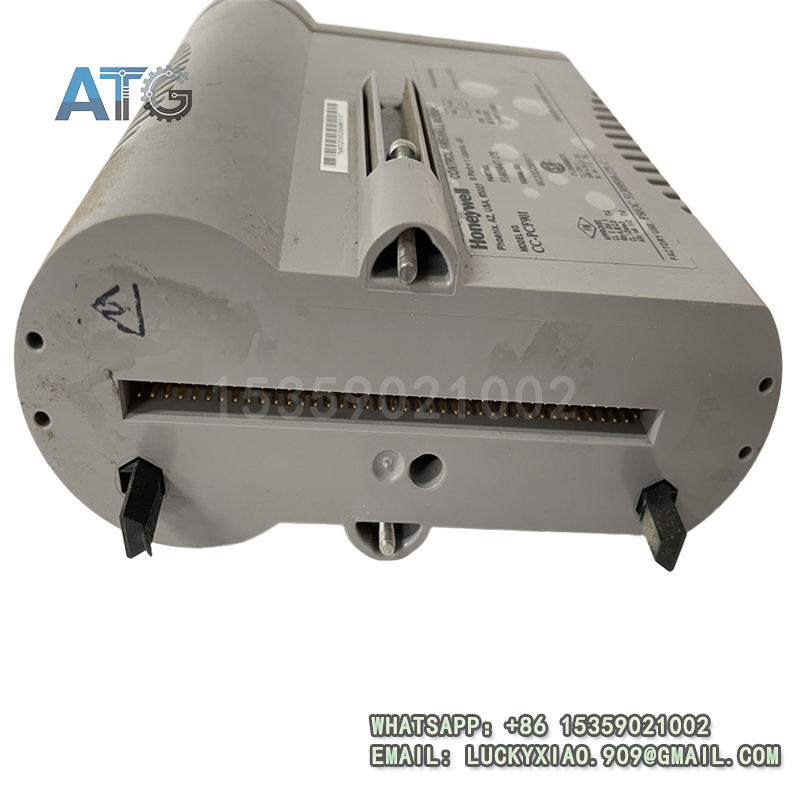

HONEYWELL CC-PCF901 51405047-175
Physical Parameters (Size & Weight)
Honestly, this module is designed to be compact and easy to install, fitting perfectly into the standard rack of the Experion PKS C300 system. It doesn’t take up extra space, which is very practical for crowded control cabinets. Here are the key physical details:
- Dimensions: 88mm × 122mm × 146mm (similar to a small notebook, easy to install)
- Weight: Approximately 1.1kg (light enough for single-person installation)
- Mounting: Experion PKS C300 standard rack mounting (no extra adapters required)
- Enclosure Material: Industrial-grade metal shell (tough, anti-collision and anti-interference)
- Protection Level: IP20 (cabinet mounting, effective dust-proof)
- Indicator Lights: LED indicators (power, operation, fault, network status—clear at a glance)
Technical Specifications
Let’s talk about the technical specs that are really useful for actual use—no fancy jargon, just practical content. It runs on 24VDC ±10% voltage, which can adapt to small power fluctuations common in industrial sites.It has 8 Ethernet ports for stable network connection, and supports high-speed data transmission—faster and more reliable than modules with fewer ports. A few more key points:
- Operating Temperature: -40℃ ~ 80℃ (works normally in extremely cold and hot workshops)
- Communication Protocol: Ethernet, stable and efficient data interaction
- Security Function: Supports security policy configuration, traffic monitoring and log recording
- Compatibility: Fully compatible with all modules of Experion PKS C300 Series
HONEYWELL CC-PCF901 51405047-175
Application Industries
It’s widely used in various industrial fields that require high network security, especially those relying on DCS systems. Here are the main application scenarios:
- Chemical Industry: Protect DCS network security in reactor control and hazardous material processing
- Power Industry: Ensure the network security of thermal power plant auxiliary system and turbine control
- Oil & Gas Industry: Protect refinery and gas pipeline DCS network from unauthorized access
- Metallurgical Industry: Safeguard the network stability of steel mill furnace control system
For example, in a chemical plant, this module blocks unauthorized network access to the reactor control system, preventing malicious operations that could lead to production accidents—its role is irreplaceable.
Usage Instructions
Using this module isn’t difficult, but there are a few common mistakes to avoid—let me remind you carefully.
- Installation: Mount it on the C300 standard rack, ensure the connection is firm—loose connections will affect network communication and security protection.
- Wiring: Use shielded Ethernet cables, separate network cables from power cables to avoid signal interference (I’ve seen many security failures caused by wrong wiring).
- Configuration: Set security policies via Honeywell Control Builder software according to on-site needs—don’t use the default settings blindly.
