Description

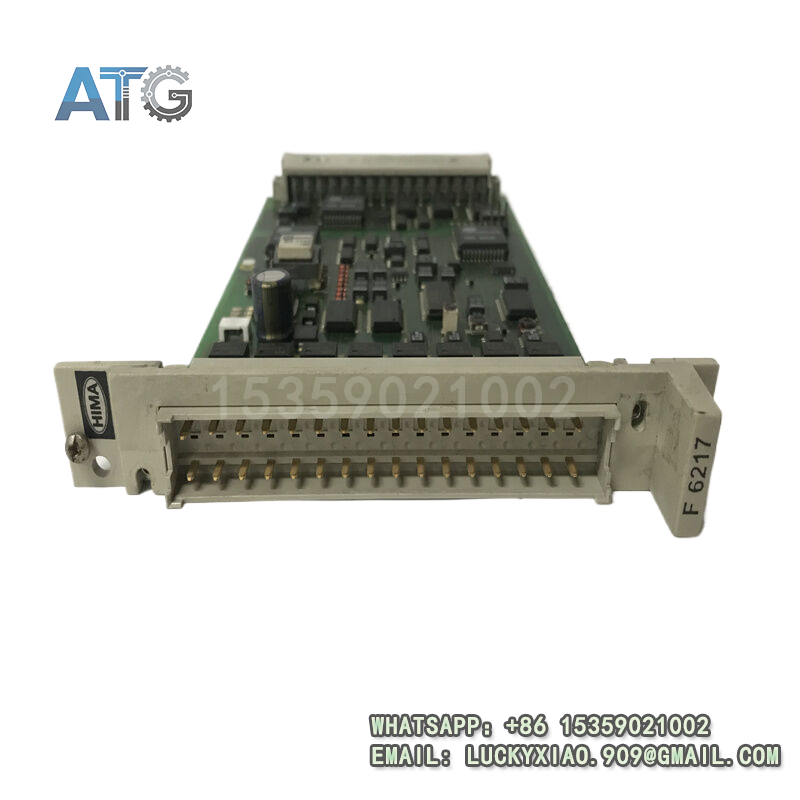

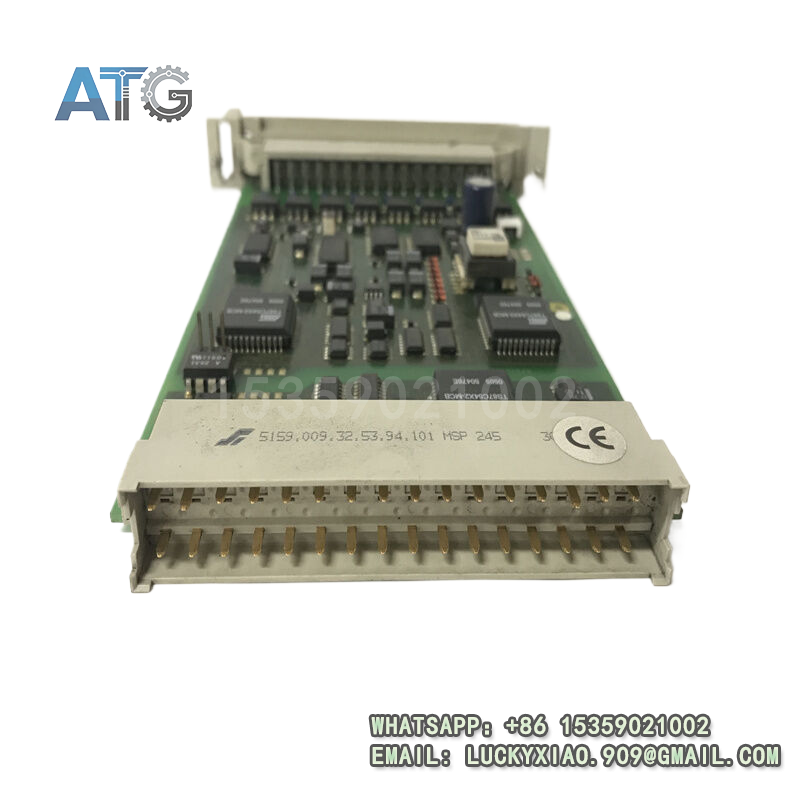

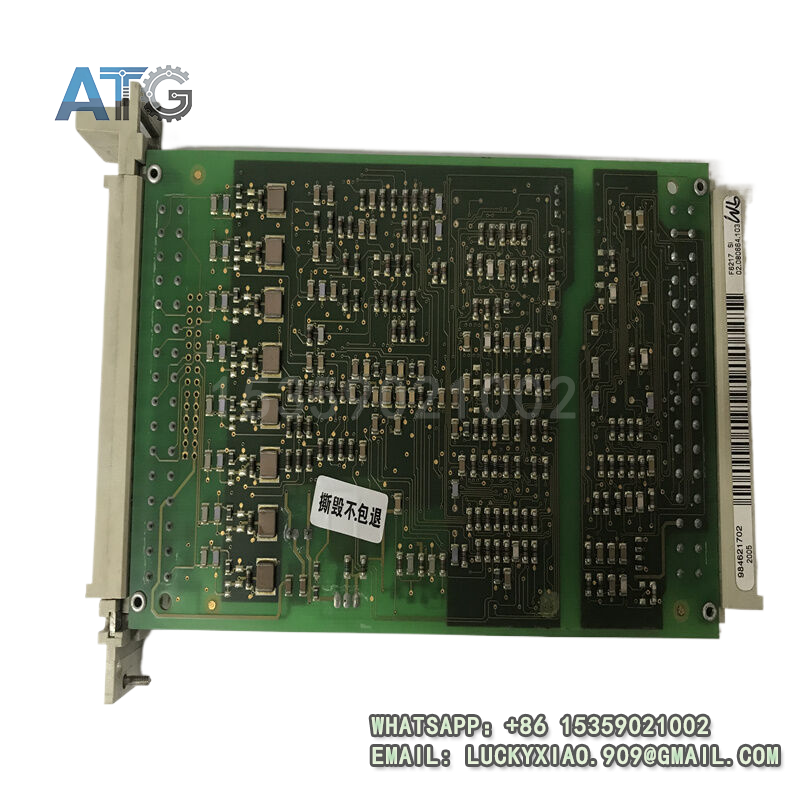

HIMA F6217 Product Introduction
- Model: F6217
- Brand: HIMA (HIMA Paul Hildebrandt GmbH + Co KG)
- Series: HIMA HIMATRIX Series
- Core Function: Analog signal acquisition & safety control
- Type: Analog Input Module (Safety-Related)
- Key Specs: 24VDC, 8 channels, SIL 3
- Supply Status: in stock
- Stock: 11
- Warranty: 18 months
- Ship From: Europe
HIMA F6217 984621702
Product System Function Introduction
1. Applicable SystemMainly used in HIMA HIMATRIX Series safety PLC systems.Applied to industrial safety instrument systems (SIS).superscript:1Suitable for high-safety-requirement industrial scenarios.superscript:3Compatible with H51q / H41q safety controllers.superscript:62. System RoleCore component of safety instrument systems (SIS).superscript:1Collects analog signals from field sensors (temperature, pressure).superscript:1Converts analog signals to digital for system processing.superscript:7Ensures safe operation of industrial processes.superscript:33. Working PrincipleAdopts dual-channel redundant design for signal reliability.superscript:8Receives 4-20mA/0-10V analog signals from sensors.superscript:4Converts signals via 12-bit ADC for high accuracy.superscript:9Conducts real-time self-diagnosis to detect faults promptly.superscript:1Transmits processed data to safety controllers via bus.superscript:9
Physical Parameters (Size & Weight)
- Dimensions: 20mm × 190mm × 128mm
- Weight: Approximately 0.14kg
- Mounting: 4 TE standard rack mounting
- Enclosure Material: High-strength industrial plastic
- Indicator Lights: LED indicators (operation, fault)
- Protection Level: IP20 (cabinet mounting)
Technical Specifications
- Operating Voltage: 24VDC ±10%, 5VDC auxiliary power
- Input Signal: 4-20mA current, 0-5/10V voltage.superscript:4
- Channels: 8 analog input channels, channel isolation.superscript:1
- Safety Level: IEC 61508 SIL 3.superscript:2
- Operating Temperature: -20℃ ~ 60℃, non-condensing
- Sampling Rate: Configurable, update every 50ms.superscript:9
- Resolution: 12-bit, high signal acquisition accuracy.superscript:4
HIMA F6217 984621702
Application Industries
- Oil & Gas Industry: Refineries, gas fields, drilling platforms.superscript:5
- Chemical Industry: Reactor safety control, hazardous material processing.superscript:7
- Power Industry: Thermal power plants, nuclear power facilities.superscript:5
- Metallurgical Industry: Blast furnace, converter automation control.superscript:5
Usage Instructions
- Installation: Mount on 4 TE standard rack, ensure good ventilation.
- Wiring: Use shielded cables, separate power and signal lines.
- Configuration: Set parameters via HIMA configuration software.
- Maintenance: Check indicators regularly, clean surface dust.
- Safety Notes: Cut off power before maintenance, avoid overload.
