GE IC698PSA350 Product Introduction
Product Overview

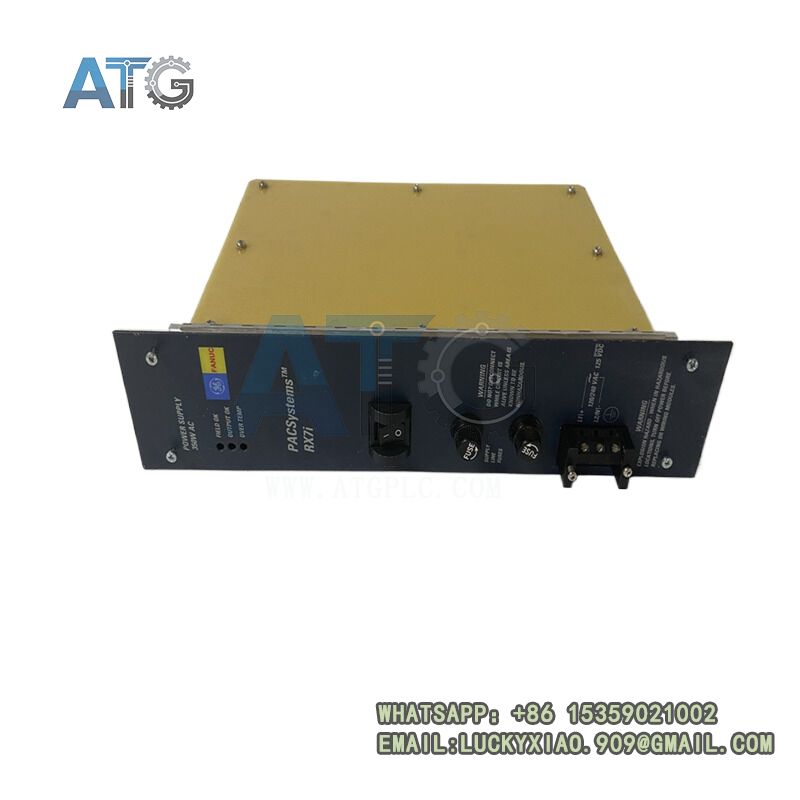

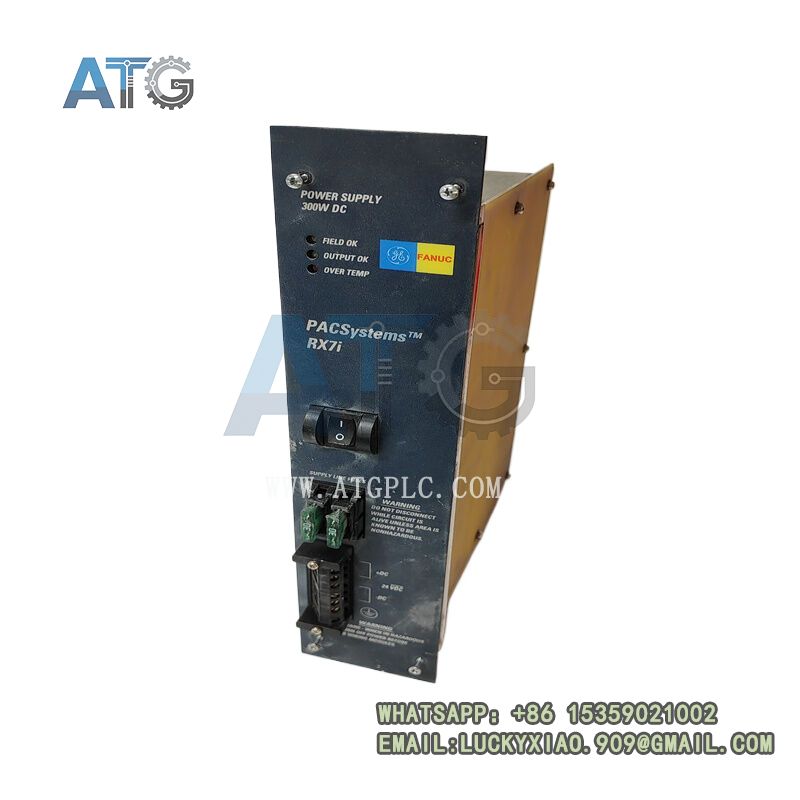

The GE IC698PSA350 is a 350W high-capacity chassis power supply module designed for the GE PACSystems RX7i PLC control system. It installs in slot 0 of the RX7i backplane and serves as the core power source for the entire control rack.
This unit converts wide-range AC or DC input power into regulated, isolated DC outputs. It delivers clean, stable power for RX7i CPUs, I/O modules, communication cards and field interface devices. With industrial-grade circuitry and comprehensive fault protection, it ensures continuous and reliable operation of mission-critical automation systems. It is widely used for new system configuration, rack expansion and spare part replacement in industrial automation projects.
Core Product Features
- Universal wide input accepts 85–264 VAC and 100–150 VDC, adapting to unstable grid power and backup DC power systems.
- Three isolated DC outputs (+5 V, +12 V, -12 V) support logic circuits, relay drivers and analog signal modules across the backplane.
- 1500 VDC input-to-output isolation protects control circuits from field power surges and ground loop interference.
- Built-in multi-layer protection covers overvoltage, overcurrent and short-circuit conditions with automatic recovery after fault removal.
- Dedicated ACFAIL# signal sends early power-loss notification to the CPU for controlled, orderly system shutdown.
- 0.99 power factor and high conversion efficiency reduce heat generation and lower overall energy consumption.
- Replaceable input fuses on both line and neutral sides protect the module from severe input faults.
- Standard plug-in design enables fast installation and direct replacement without rewiring.
Technical Specifications
- Official Model: IC698PSA350
- Product Type: 350W High-Capacity Backplane Power Supply
- Compatible System: GE PACSystems RX7i PLC Control System
- Input Voltage: 85 – 264 VAC; 100 – 150 VDC
- Input Frequency: 47 – 63 Hz
- Total Output Power: 350 W maximum
- Output Ratings:
- +5 VDC: 4.875 – 5.25 V, 0 – 60 A
- +12 VDC: 11.64 – 12.6 V, 0 – 12 A
- -12 VDC: –12.6 – –11.64 V, 0 – 4 A
- Isolation Strength: 1500 VDC input-to-output
- Power Factor: 0.99 (AC input)
- Protection Modes: Overvoltage, overcurrent, short-circuit, AC failure detection
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Mounting: RX7i chassis slot 0 plug-in installation
- Certifications: CE, UL, cULus listed
Application Fields
- High-performance RX7i PLC control systems for factory automation
- Automotive production lines and robotic workcell control
- Process control in chemical, petrochemical and pharmaceutical industries
- Power generation and distribution monitoring and control
- Critical industrial systems requiring 24/7 continuous operation
- Legacy RX7i system retrofit, capacity expansion and spare part inventory
Related Model Recommendations
- IC698PSA100: 100W base-model RX7i power supply for small to medium control racks.
- IC698CPU350: RX7i series central processor unit that pairs with the PSA350 power supply.
- IC698CHS007: 7-slot RX7i chassis that accommodates the PSA350 and I/O modules.
- IC698ETM001: RX7i Ethernet communication module for networked control and SCADA integration.
