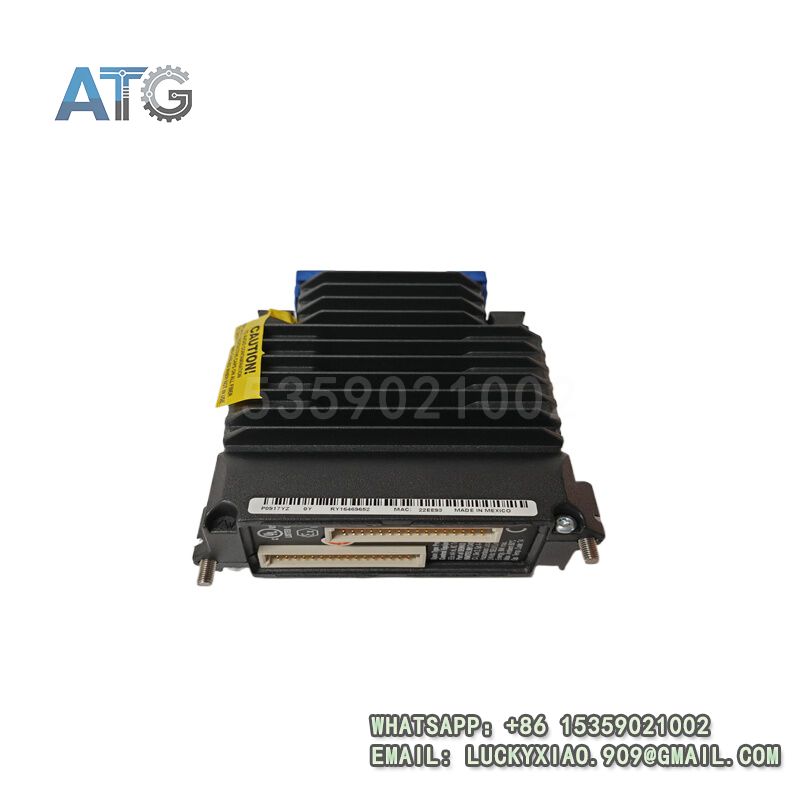

FOXBORO FCP270 P0917YZ Product Introduction
Model: FCP270 P0917YZ
Brand: FOXBORO (Emerson Automation Solutions)
Series: FOXBORO I/A Series DCS
Core Function: DCS main control & process data management
Type: CPU Controller (Main Process Controller)
Key Specs: 24VDC, 1GHz CPU, Modbus/Profinet
Supply Status: in stock
Stock: 9
Warranty: 1 year
Ship From: China
FCP270 P0917YZ
Detailed Technical Specifications
It adopts a high-performance 32-bit RISC CPU with a clock speed of 1GHz.
It has 16MB flash memory and 8MB RAM for control program storage and operation.
Power supply: 24VDC ±10%, power consumption ≤15W under normal operation.
Operating temperature range: -40℃ ~ 70℃, suitable for harsh industrial environments.
Storage temperature: -55℃ ~ 85℃, ensuring stable storage in extreme conditions.
Humidity tolerance: 5%~95% (non-condensing), no condensation damage.
Communication ports: 2 Ethernet ports (10/100/1000 Mbps) for data transmission.
I/O interface: Supports up to 256 I/O points, expandable via I/A Series backplane.
Isolation: 2500VAC (rms) between power supply and signal circuits.
MTBF: ≥200,000 hours (at 40℃ ambient temperature).
Core Technical Features
Supports redundant configuration (hot standby) for high system reliability.
Integrates advanced control algorithms (PID, cascade control, fuzzy control).
Real-time data processing speed: ≤1ms for key control loops.
Built-in self-diagnostic function, covering CPU, memory and communication circuits.
Supports online program modification without system shutdown.
Complies with IEC 61508 standard, supports SIL 2 safety level.
EMC compliant with IEC 61000-4-2/4/5, strong anti-interference ability.
Supports HART, Modbus TCP/IP and Profinet communication protocols.
Performance Advantages
Fast response speed ensures real-time control of complex processes.
Redundant design reduces unplanned downtime significantly.
Flexible I/O expansion meets diverse on-site application needs.
Compatible with legacy I/A Series modules for easy system upgrade.
Low power consumption and high stability for long-term operation.
System Application, Role & Working Principle
Applicable System: It is the core controller of FOXBORO I/A Series DCS. It is widely used in large-scale industrial process control systems, including oil & gas, chemical, power, metallurgy and water treatment industries.superscript:2
System Role: As the main control unit of DCS, it executes control logic. It collects data from field I/O modules. It sends control commands to actuators. It communicates with operation stations and engineering stations. It ensures the stable and efficient operation of the entire control system.superscript:2
Working Principle: It receives process signals from field I/O modules. It processes signals through built-in control algorithms. It calculates the optimal control output. It transmits control commands to field actuators. It feeds back operation status to the upper monitoring system. It conducts real-time self-diagnosis and triggers alarms for faults.superscript:2
Physical Parameters
|
Parameter Name
|
Detailed Specification
|
|---|---|
|
Dimensions
|
175mm (L) × 100mm (W) × 50mm (H), standard rack size
|
|
Weight
|
Approximately 0.8kg, easy to install and maintain
|
|
Mounting Type
|
FOXBORO I/A Series standard rack mounting
|
|
Enclosure Material
|
High-strength flame-retardant plastic, anti-corrosion
|
|
Indicator Lights
|
LED indicators for power, operation, fault and communication status
|
FCP270 P0917YZ
Application Industries
Oil & Gas Industry
Controls refinery and gas field process parameters.
Realizes interlock control of oil and gas transmission systems.
Reduces production risks and ensures safe operation.superscript:2
Chemical Industry
Controls reactor temperature, pressure and flow parameters.
Executes safety interlock for chemical reaction processes.
Ensures product quality and production safety.superscript:2
Power Industry
Controls boiler, turbine and generator parameters.
Ensures stable power generation and grid connection.
Supports load adjustment and fault emergency handling.superscript:2
Technical Usage Instructions
-
Installation: Install on FOXBORO I/A Series standard rack. Ensure firm fixation and good ventilation. Keep away from high-temperature heat sources and strong electromagnetic interference.
-
Wiring: Follow the official wiring diagram strictly. Use shielded cables for communication lines. Separate power cables and signal cables to avoid interference.
-
Configuration: Use FOXBORO I/A Series configuration software. Set control logic, communication parameters and I/O points. Save configuration after debugging.
-
Maintenance: Check indicator lights regularly to monitor operation status. Clean surface dust with a dry soft cloth. Test communication and control performance semi-annually.
-
Safety Notes: Cut off power before maintenance. Do not exceed rated voltage and current. Only qualified technicians can perform debugging and maintenance.
Compatibility & Replacement
Compatible with FOXBORO I/A Series DCS all versions.
Directly compatible with FOXBORO FCP280 and FCP260 controllers.
Supports connection with all FOXBORO I/A Series I/O modules (FBM series).
Compatible with third-party DCS systems via standard communication protocols.
