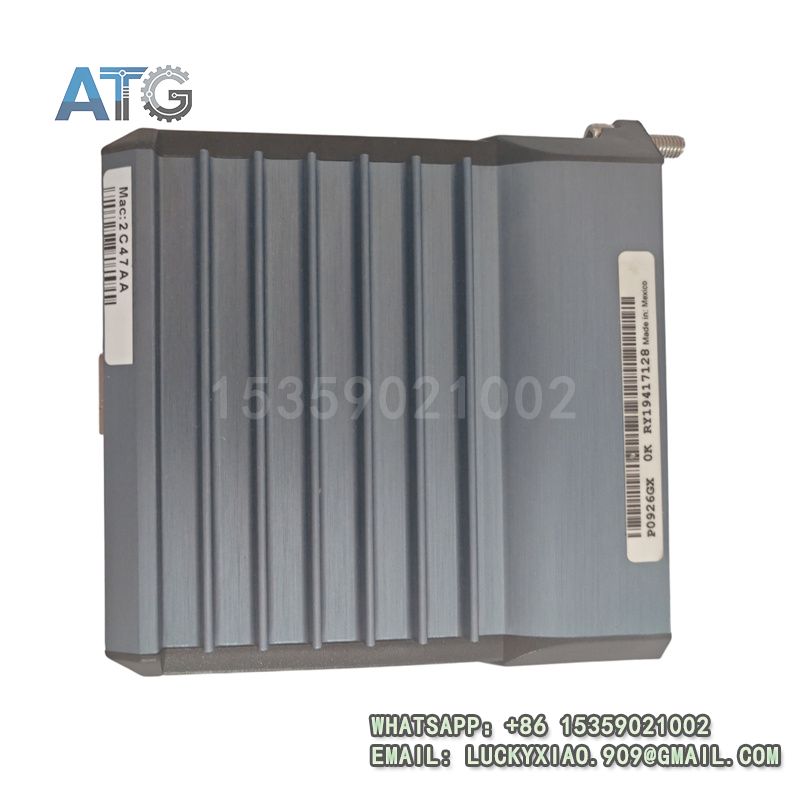

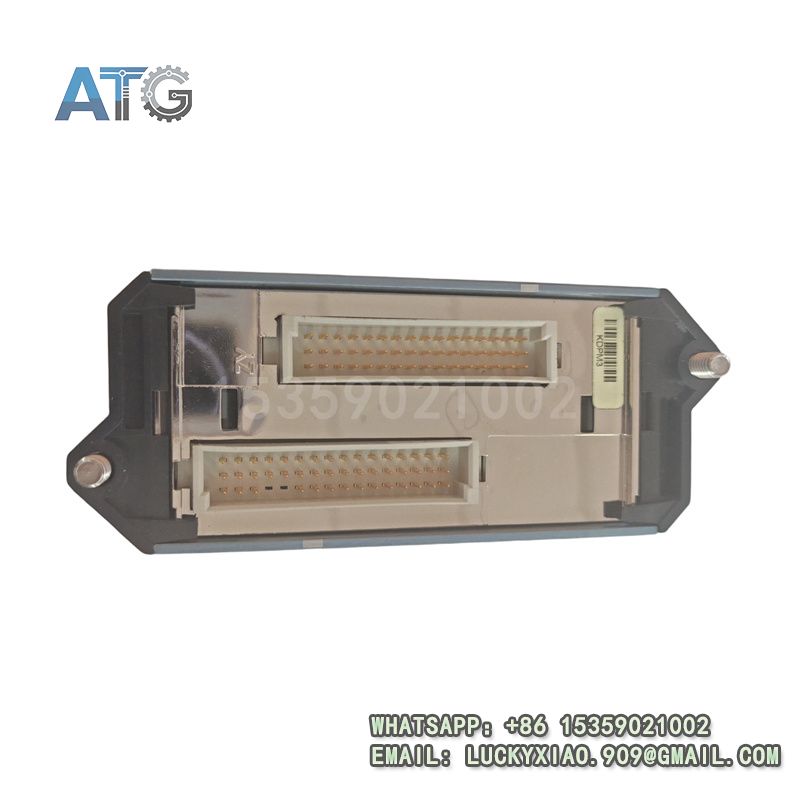

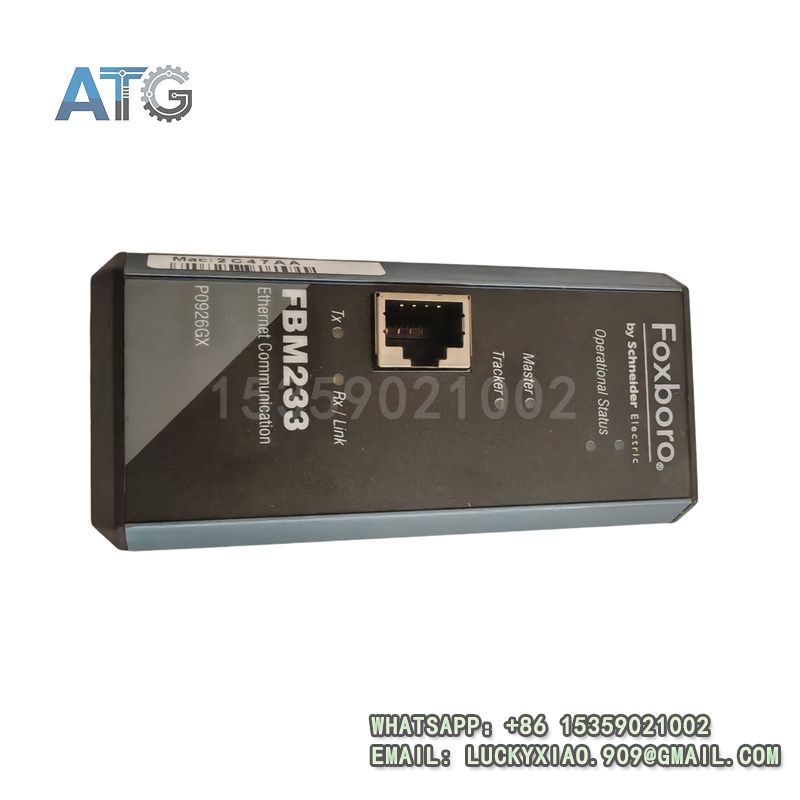

FOXBORO FBM233 P0926GX Product Introduction
Model: FBM233 P0926GX
Brand: FOXBORO (Emerson Automation Solutions)
Series: FOXBORO I/A Series DCS
Core Function: Process control & field device data transmission
Type: Fieldbus Module (FDSI)
Key Specs: 24VDC, 100Mbps Ethernet, Modbus TCP/IP
Supply Status: in stock
Stock: 15Warranty: 18 months
Ship From: China
FBM233 P0926GX
Detailed Technical Specifications
It adopts a 32-bit industrial RISC processor. Its instruction execution speed reaches 0.1 microsecond per Boolean instruction.It has 8MB program memory and 4MB data memory for large-scale control programs.Power supply: 24VDC ±10%, power consumption is about 5W under idle condition.Operating temperature range: -40°C to +85°C, storage temperature: -55°C to +90°C.Humidity tolerance: 5%~95% (non-condensing), protection grade: IP20.Communication interfaces: Ethernet 10/100BaseTX, ControlNet, RS-232.It supports up to 64 field devices and can be expanded to 128 via FEM100.Isolation: 1500VAC (rms) between channels and between channel and backplane.MTBF: ≥150,000 hours (at 40°C ambient temperature).
Core Technical Features
It has redundant Ethernet connection design for high system stability.Dual-module parallel operation supports hot standby redundancy and power redundancy.Bit-by-bit matching technology ensures data consistency and avoids error transmission.Built-in overcurrent, overvoltage and short-circuit protection for safe operation.It is programmable and can be customized according to on-site application needs.Hot-swappable design allows online maintenance without system shutdown.EMC compliance with IEC 61000-4-2/4/5 for strong anti-interference ability.Aluminum alloy enclosure ensures durability in harsh industrial environments.
FBM233 P0926GX
System Application, Role & Working Principle
Applicable System: It is a core module of FOXBORO I/A Series DCS. It integrates seamlessly into industrial process control systems. It is widely used in oil & gas, chemical, power, pharmaceutical and water treatment industries.
System Role: It acts as an interface between field devices and the control system. It collects process variables such as temperature, pressure and flow. It sends control commands to actuators and provides real-time alarm notifications. It ensures the continuous and safe operation of the production process.
Working Principle: It receives signals from field sensors and actuators. It processes signals through built-in filtering and isolation circuits. It transmits data to the I/A Series controller via industrial protocols. It executes control logic and feeds back operation status. It conducts real-time self-diagnosis to detect faults promptly.
Physical Parameters
Dimensions: 146mm (L) × 89mm (W) × 30mm (H), compact and space-saving.Weight: Approximately 0.5kg, easy to install and maintain.Mounting: DIN rail or FOXBORO I/A Series standard rack mounting.Enclosure Material: Aluminum alloy, flame-retardant and high-temperature resistant.
Application Industries
Oil & Gas Industry: It monitors refinery and gas field process parameters. It realizes equipment interlock control to avoid unplanned shutdown.
Chemical Industry: It is used for process control and automation optimization. It ensures the stability of chemical reaction processes.
Power Industry: It monitors boiler steam pressure and turbine parameters. It adjusts valve opening to ensure stable power generation.
Pharmaceutical Industry: It monitors key parameters in the production process. It ensures product quality and compliance with industry standards.
Water Treatment Industry: It is used for water quality monitoring and process control. It improves the efficiency of water treatment.
FBM233 P0926GX
Technical Usage Instructions
Installation: Mount it on a standard DIN rail or I/A Series rack. Ensure firm fixation and good ventilation. Keep it away from high-temperature heat sources and strong electromagnetic interference.
Wiring: Follow the official wiring diagram strictly. Use shielded twisted-pair cables for signal transmission. Separate power and signal cables to reduce interference.
Configuration: Use FOXBORO I/A Series configuration software. Set communication protocols and I/O parameters. Calibrate the module before formal operation.
Maintenance: Check module indicators regularly. Clean surface dust with a dry soft cloth. Test communication and signal transmission performance quarterly. Back up configuration data periodically.
Safety Notes: Cut off power before non-hot-swap maintenance. Do not exceed the rated voltage and current. Only qualified technicians can perform debugging and maintenance.
Compatibility & Replacement
It is compatible with FOXBORO I/A Series controllers such as FCP270 and FCP280.It supports backward compatibility with legacy I/A Series system versions.It can directly replace FOXBORO FBM232 and FBM234 fieldbus modules.It is compatible with third-party systems through standard industrial protocols.
