BENTLY NEVADA 3500/91 161204-01 Product Introduction
- Model: 3500/91 161204-01
- Brand: BENTLY NEVADA (Baker Hughes)
- Series: BENTLY NEVADA 3500 Machinery Protection System
- Core Function: EGD protocol communication & data integration
- Type: Communication Module (EGD Gateway Module)
- Key Specs: 24VDC, EGD/Modbus TCP, Ethernet
- Supply Status: in stock
- Stock: 12
- Warranty: 18 months
- Ship From: Europe

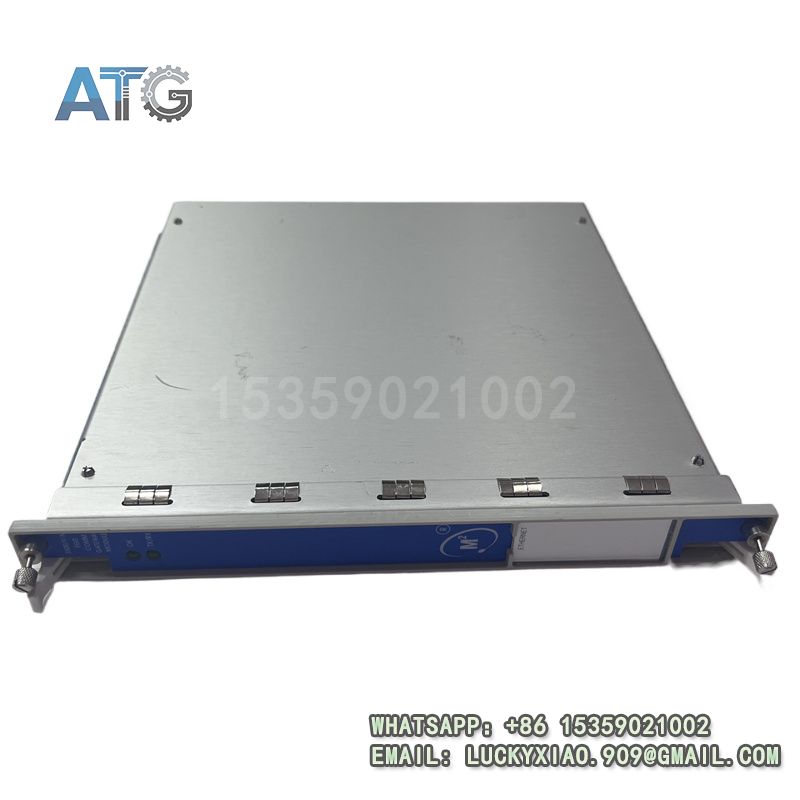

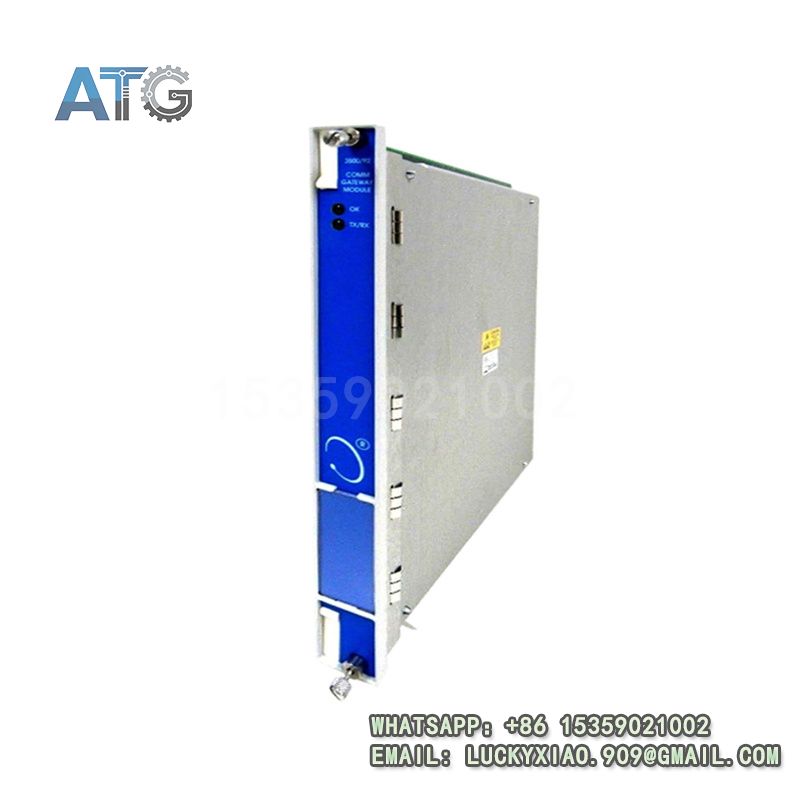

BENTLY NEVADA 3500/91 161204-01
Product System Function Introduction
1. Applicable SystemMainly used in BENTLY NEVADA 3500 Machinery Protection System.superscript:1Applied to rotating machinery monitoring and protection systems.superscript:4Suitable for power, oil & gas, petrochemical industry scenarios.superscript:4The 3500 system includes multiple modules, such as 3500/05 (instrument rack), 3500/15 (power supply), 3500/22M (transient data interface module), 3500/40M (displacement monitor), 3500/32 (relay module) and 3500/93 (display module).superscript:4superscript:5This 3500/91 module has 1 main order number (161204-01), and its recommended replacement model is 3500/91M with corresponding matching order numbers.superscript:1It needs to be equipped with I/O modules such as 3500/22M (TDI module, firmware ≥1.20), 136719-01 (grounded I/O module) and 125768-01 (rack interface I/O module).superscript:1superscript:3superscript:6
2. System RoleCore EGD communication gateway of 3500 machinery protection system.superscript:1Integrates 3500 rack monitoring data into upper control systems.superscript:1Transmits vibration, displacement and alarm data to GE Mark VIe controllers.superscript:1Serves as a communication bridge between 3500 system and other controllers.superscript:1Only one 3500/91 module is allowed to be installed per 3500 rack.superscript:1
3. Working PrincipleAdopts EGD protocol to realize real-time data transmission.superscript:1Collects monitoring data from 3500 series modules via rack backplane.superscript:4Converts data format to be compatible with upper control systems.superscript:1Connects with matching I/O modules to ensure stable data collection.superscript:1Installs in 1 full-height front slot + 1 full-height rear I/O slot of 3500 rack.superscript:1
Physical Parameters (Size & Weight)
- Dimensions: 130mm × 19mm × 191mm.superscript:1
- Weight: Approximately 0.2kg.superscript:1
- Mounting: 3500 series standard rack mounting (full-height slot)
- Enclosure Material: High-strength industrial aluminum alloy
- Protection Level: IP20 (cabinet mounting)
- Interface Port: 1 Ethernet port, 1 backplane connection port

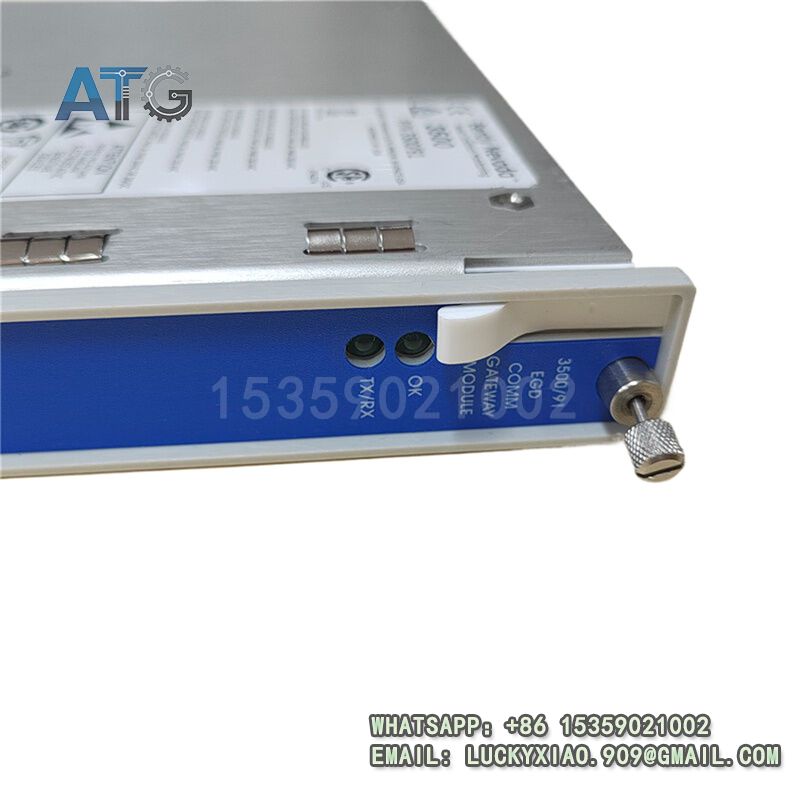

BENTLY NEVADA 3500/91 161204-01
Technical Specifications
- Operating Voltage: 24VDC ±10%, stable power supply
- Communication Protocols: EGD, Modbus TCP, Ethernet.superscript:1
- Operating Temperature: -20℃ ~ 65℃, non-condensing
- Compatibility: Fully compatible with all 3500 series modules.superscript:4
- Compliance: Meets API 670 machinery protection standard.superscript:4
- Supporting Modules: 3500/22M TDI module (firmware ≥1.20).superscript:1
- Self-check: Built-in self-diagnostic function for fault detection
Application Industries
- Power Industry: Turbine, generator condition monitoring.superscript:4
- Oil & Gas Industry: Refinery, gas field rotating machinery protection.superscript:4
- Petrochemical Industry: Compressor, pump monitoring data integration
- Metallurgical Industry: Rotating equipment communication integration
Usage Instructions
- Installation: Install in 3500 rack’s full-height front and rear slots
- Wiring: Connect Ethernet cable and backplane, match with I/O modules
- Configuration: Set EGD protocol parameters via 3500 configuration software.superscript:5
- Maintenance: Check module connection and I/O matching regularly
- Safety Notes: Cut off power before installation and maintenance
