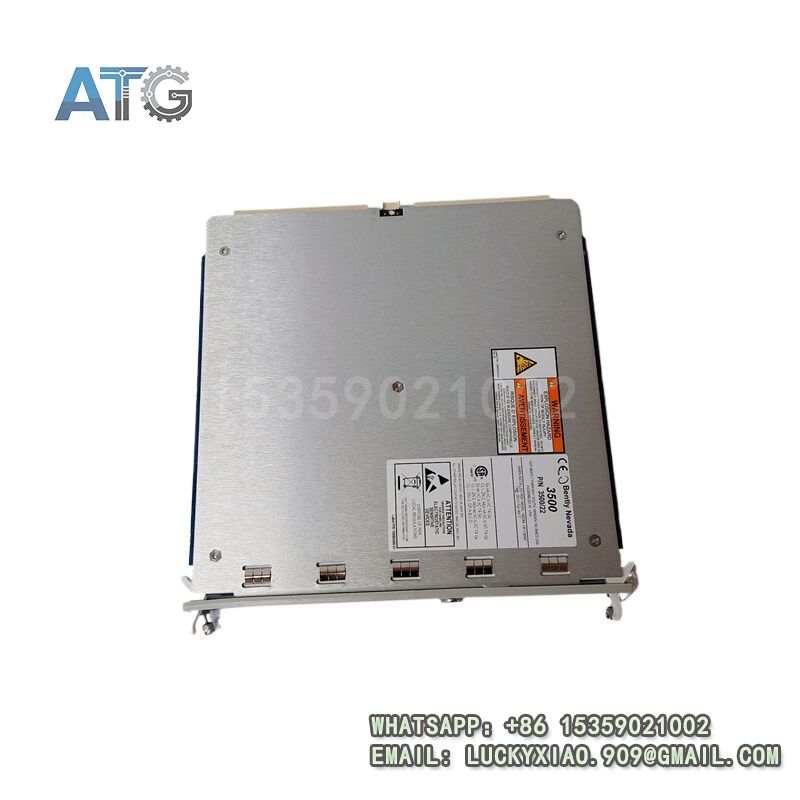

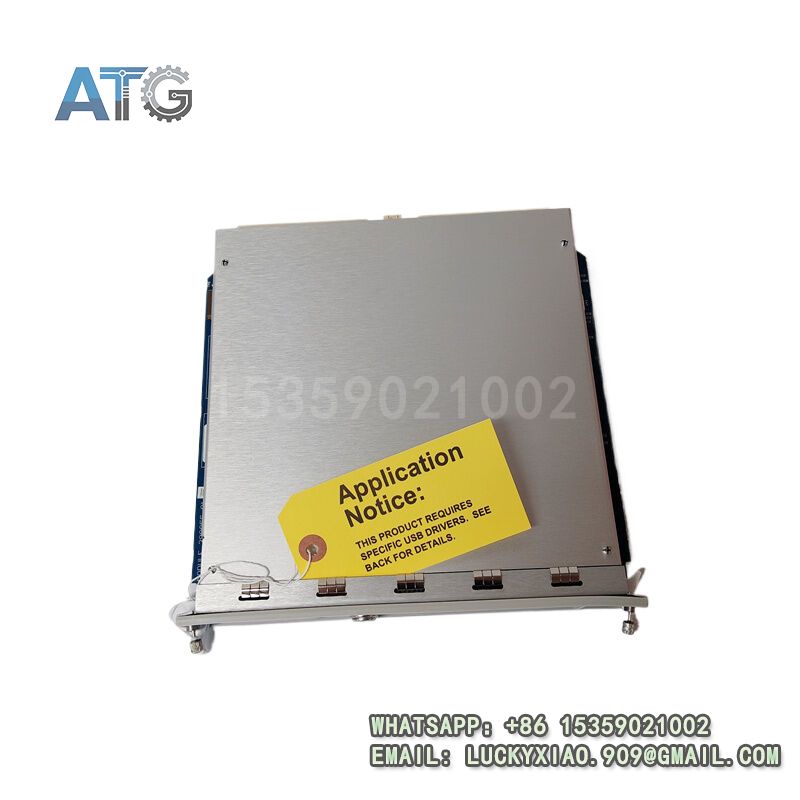

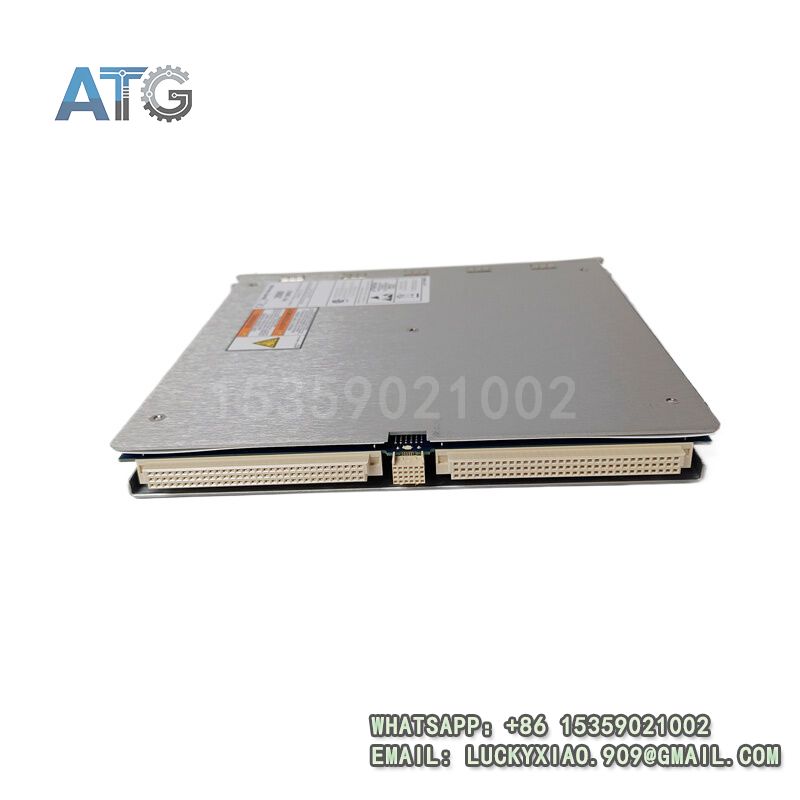

BENTLY NEVADA 3500/22M 288055-01 Product Introduction
- Model: 3500/22M 288055-01
- Brand: BENTLY NEVADA (Baker Hughes)
- Series: BENTLY NEVADA 3500 Machinery Protection System
- Core Function: Transient data interface & system communication
- Type: Communication Module (Transient Data Interface Module)
- Key Specs: 24VDC, Ethernet, System 1 compatible
- Supply Status: in stock
- Stock: 15
- Warranty: 18 months
- Ship From: Europe
BENTLY NEVADA 3500/22M 288055-01
Product System Function Introduction
1. Applicable SystemMainly used in BENTLY NEVADA 3500 Machinery Protection System.superscript:1Applied to rotating machinery monitoring and protection systems.superscript:1Suitable for power, oil & gas, petrochemical industry scenarios.superscript:1The 3500 system includes multiple modules, such as 3500/40M (displacement monitor), 3500/32 (4-channel relay module), 3500/50 (speed module), 3500/60 (temperature monitor) and 3500/90 (communication gateway).superscript:32. System RoleCore communication component of 3500 machinery protection system.superscript:1Transmits transient data between system modules and upper software.superscript:1Enables connection with System 1 condition monitoring software.superscript:1Facilitates plantwide centralized monitoring of rotating machinery.superscript:13. Working PrincipleBuilt-in Ethernet port for fast data transmission.superscript:1Collects transient data from 3500 series monitoring modules.superscript:3Converts data into accessible format for System 1 software.superscript:1Supports real-time data transmission without extra wiring.superscript:1Works with system backplane to ensure stable communication.superscript:3
Physical Parameters (Size & Weight)
- Dimensions: 89mm (H) × 483mm (W) × 229mm (D)
- Weight: Approximately 1.8kg
- Mounting: 3500 series standard rack mounting (2U)
- Enclosure Material: High-strength industrial aluminum alloy
- Protection Level: IP20 (cabinet mounting)
- Interface Port: 1 Ethernet port, 1 backplane connection port
BENTLY NEVADA 3500/22M 288055-01
Technical Specifications
- Operating Voltage: 24VDC ±10%, stable power supply
- Communication Protocol: Ethernet, supports TCP/IP.superscript:1
- Operating Temperature: -20℃ ~ 65℃, non-condensing
- Data Transmission Rate: Up to 100Mbps
- Compatibility: Fully compatible with all 3500 series modules.superscript:3
- Compliance: Meets API 670 machinery protection standard.superscript:1
- Self-check: Built-in self-diagnostic function for fault detection
Application Industries
- Power Industry: Turbine, generator condition monitoring.superscript:1
- Oil & Gas Industry: Refinery, gas field rotating machinery protection.superscript:1
- Petrochemical Industry: Compressor, pump transient data monitoring
- Metallurgical Industry: Rotating equipment health monitoring
Usage Instructions
- Installation: Insert into 3500 series rack, ensure firm connection
- Wiring: Connect Ethernet cable to System 1 software terminal
- Configuration: Set communication parameters via 3500 configuration software
- Maintenance: Check Ethernet connection regularly, clean surface dust
- Safety Notes: Cut off power before installation and maintenance
