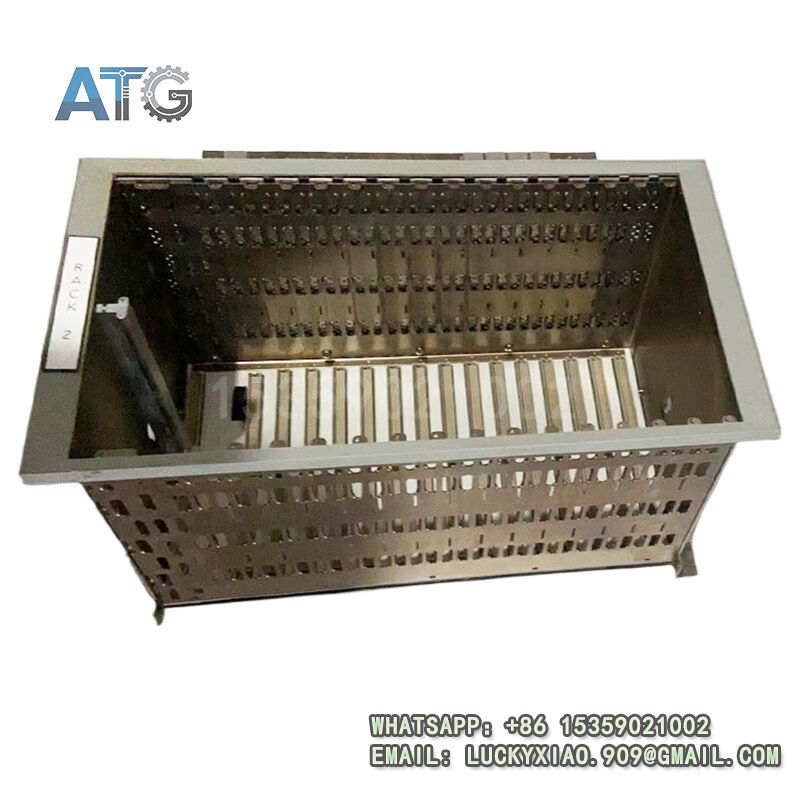

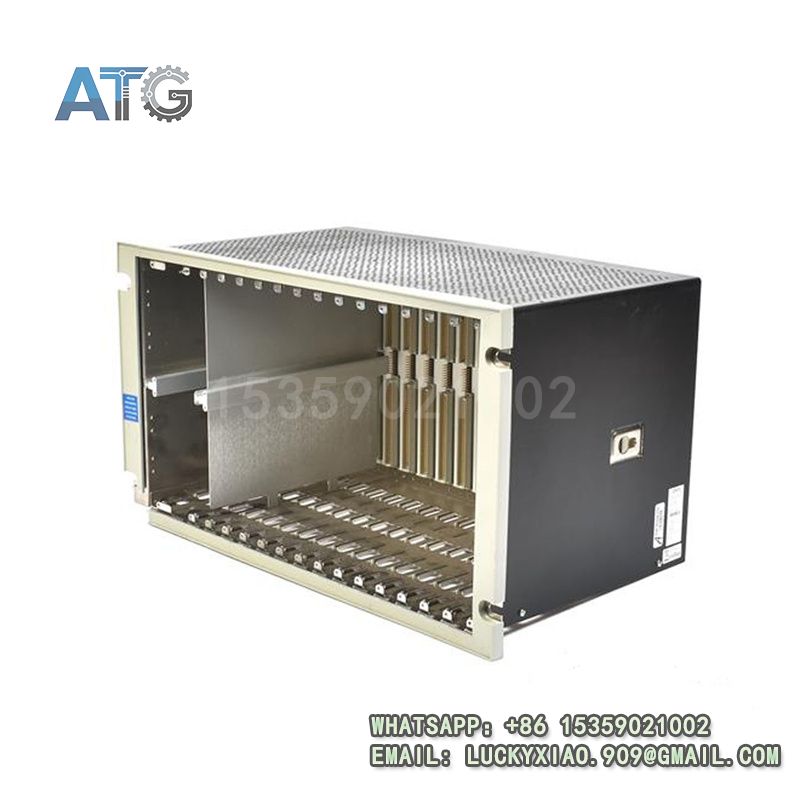

BENTLY NEVADA 3500/05-01-02-00-00-01 Product Introduction
- Model: 3500/05-01-02-00-00-01
- Brand: BENTLY NEVADA (Baker Hughes)
- Series: BENTLY NEVADA 3500 Machinery Protection System
- Core Function: Machinery protection rack & module support
- Type: Rack Module (19-inch Mounting Rack)
- Key Specs: 19-inch, 13U, 15 module slots
- Supply Status: in stock
- Stock: 8
- Warranty: 18 months
- Ship From: Europe
3500/05-01-02-00-00-01
Product System Function Introduction
1. Applicable SystemMainly used in BENTLY NEVADA 3500 Machinery Protection System.superscript:2Applied to rotating machinery monitoring and protection systems.superscript:2Suitable for power, oil & gas, petrochemical industry scenarios.superscript:2The 3500 system includes multiple modules, such as 3500/40M (displacement monitor), 3500/32 (relay module), 3500/50 (speed module), 3500/90 (communication gateway) and 3500/60 (temperature monitor).superscript:12. System RoleCore mounting and connection component of 3500 protection system.superscript:3Provides mechanical support for 3500 series monitoring modules.superscript:3Realizes power distribution and data communication between modules.superscript:3Protects internal modules from dust and collision damage.superscript:33. Working PrincipleBuilt-in backplane bus for power supply and data transmission.superscript:315 slots for installing various 3500 series functional modules.superscript:3Supports hot-swap of modules for online maintenance.superscript:3Adopts front and rear ventilation design for natural heat dissipation.superscript:3Connects with System 1 software for centralized monitoring.superscript:2
Physical Parameters (Size & Weight)
- Dimensions: 572mm (H) × 483mm (W) × 406mm (D)
- Weight: Approximately 7.7kg (empty rack).superscript:3
- Mounting: Standard 19-inch cabinet mounting.superscript:3
- Enclosure Material: Steel shell with spray coating, aluminum guide rails.superscript:3
- Protection Level: IP20 (cabinet mounting)
- Slot Quantity: 15 slots for 3500 series modules.superscript:3
3500/05-01-02-00-00-01
Technical Specifications
- Rack Size: 13U height, compliant with 19-inch industrial standard.superscript:3
- Operating Temperature: -20℃ ~ 65℃, non-condensing.superscript:3
- Heat Dissipation: Front and rear ventilation, natural convection.superscript:3
- Compatibility: Compatible with all 3500 series modules.superscript:1
- Installation: Cabinet mounting with mounting ears and screws.superscript:3
- Bus Function: Built-in backplane bus for module communication.superscript:3
- Protection: Dust-proof and anti-collision, protecting internal modules.superscript:3
Application Industries
- Power Industry: Turbine, generator monitoring and protection.superscript:2
- Oil & Gas Industry: Refinery, gas field rotating machinery protection.superscript:2
- Petrochemical Industry: Compressor, pump machinery protection.superscript:2
- Metallurgical Industry: Rotating equipment condition monitoring.
Usage Instructions
- Installation: Mount on 19-inch standard cabinet, ensure firm fixation.
- Module Installation: Insert 3500 series modules into corresponding slots.
- Wiring: Connect power and bus cables according to the manual.
- Maintenance: Clean ventilation holes regularly, check module connection.
- Safety Notes: Cut off power before module installation and maintenance.
