Description

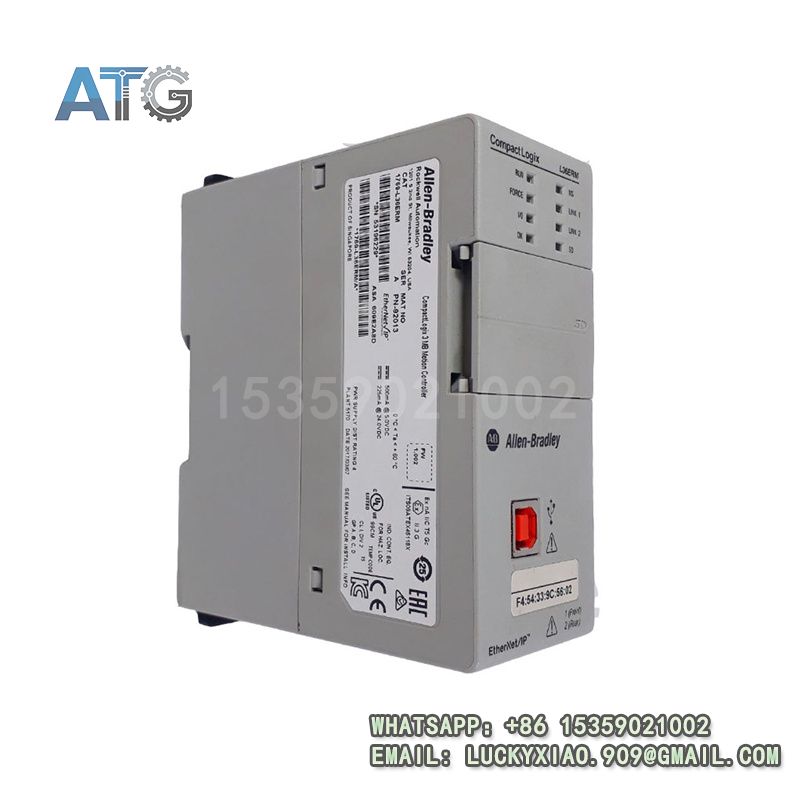

1769-L36ERM Allen-Bradley Product Introduction

• Model: 1769-L36ERM
• Brand: Allen-Bradley (Rockwell Automation)
• Series: Allen-Bradley 1769 CompactLogix Series
• Core Function: Industrial automation integrated control
• Type: CPU Module (Programmable Automation Controller)
• Key Specs: 24VDC, 2 Ethernet/IP ports, 3MB memory
• Supply Status: In Stock
• Stock: 3
• Warranty: 1 year
• Ship From: China

1769-L36ERM

1769-L36ERM Product System Function Introduction

The 1769-L36ERM is a high-performance programmable automation controller under Allen-Bradley’s 1769 CompactLogix Series, designed as the core control unit for small to medium-sized industrial automation systems. It integrates stable logic execution, advanced communication capabilities, integrated motion control and flexible I/O expansion, supporting seamless integration with various 1769 series I/O modules and peripheral equipment. As a key product in the CompactLogix family, it inherits Allen-Bradley’s mature control technology and reliable quality, providing efficient and stable control solutions for diverse industrial scenarios, and supporting up to 30 compact I/O modules and 3 expansion banks[3]. Its specific system functions are divided into the following points:

1. Functional Positioning and Core Value: As a core controller of the 1769 CompactLogix Series, this product serves as the control center of industrial automation systems, responsible for executing complex control logic, processing on-site I/O signals, managing data communication, and coordinating the operation of the entire system. Its core value lies in integrating multiple functions into a compact structure, reducing system configuration complexity, improving control accuracy and real-time performance, and ensuring the safe and efficient operation of industrial production lines[3][5].

2. Control and Processing Performance: The module is equipped with 3MB internal memory, which can store complex control programs and process large amounts of on-site data, meeting the control needs of medium-scale automation projects[3]. It supports up to 32 continuous tasks and 100 programmable tasks, with fast logic execution speed to ensure real-time response of the system. It is compatible with IEC 61131-3 standard programming languages (ladder logic, structured text, function block diagram, SFC), facilitating engineers to compile and debug programs according to actual project requirements[3]. Additionally, it supports integrated motion control over Ethernet/IP with 16 axes, adapting to motion control scenarios such as material handling and precision processing[3].

3. Compatibility and System Integration: It is fully compatible with Allen-Bradley 1769 series I/O modules (digital, analog, high-speed counter modules), supporting flexible I/O expansion to adapt to different project scale requirements[3]. It is equipped with 2 embedded Ethernet/IP ports and 1 USB communication port, realizing fast and stable data interaction with HMI, upper computers, and other industrial devices, and supporting remote monitoring and control[3]. It supports seamless integration with Allen-Bradley Studio 5000 (formerly RSLogix 5000) programming software, facilitating program editing, downloading, uploading, and fault diagnosis[1][7]. It also supports connection with 1769-SDN DeviceNet scanner module to access more types of I/O modules[3].

4. Reliability and Environmental Adaptability: The module adopts a ruggedized industrial design, with strong anti-interference, dust-proof and anti-vibration performance, suitable for operating temperatures ranging from 0℃ to 60℃ and relative humidity of 5% to 95% without condensation[3]. It is equipped with built-in power protection, fault self-diagnosis, and program backup functions (supports 1784-SD1/SD2 memory cards), effectively preventing module damage caused by power fluctuations or program loss[3]. It also has multiple certifications (CE, KC, ATEX, CCC) to meet the safety and reliability requirements of different industrial fields[2].

5. Wiring Diagram and Connection Guidelines: The 1769-L36ERM adopts standard terminal block wiring, following Allen-Bradley’s industrial wiring specifications and IEC 61131-2, NFPA 79 standards[4]. The key wiring diagrams and guidelines are as follows:

– Power Wiring: The module uses 24VDC power supply. The power terminal block is marked with positive (+) and negative (-) poles; connect the power cable strictly according to the marks, and ensure reliable grounding to avoid electromagnetic interference. The recommended wire size is 22 to 14 AWG (solid) or 22 to 16 AWG (stranded), and the terminal screw torque should comply with the product manual requirements[3][4].

– Ethernet/IP Wiring: Use CAT5e or higher twisted-pair cables, follow T568B wiring standard, and connect the two Ethernet/IP ports to the industrial switch or other Ethernet devices. Ensure the wiring is firm, and the maximum cable length of a single network segment does not exceed 100 meters[4].

– USB Wiring: Use a standard USB cable to connect the module to a computer, which is used for program downloading, parameter configuration, and on-site debugging. The USB port supports hot plugging, but it is recommended to cut off the power supply when plugging and unplugging for the first time[1][3].

– I/O Expansion Wiring: When connecting 1769 series I/O modules, align the module with the chassis backplane, ensure firm connection, and wire the I/O signals according to the terminal definition of the I/O module. Use shielded cables for analog signal wiring, and the shielding layer should be single-ended grounded to reduce signal distortion[4].

1769-L36ERM

Application Industries

With its compact structure, strong integration, high reliability and flexible expansion capabilities, the 1769-L36ERM controller is widely used in various small to medium-sized industrial automation projects, mainly covering the following fields (combining Allen-Bradley’s strength industries[3][7]):

1. Automotive Manufacturing Industry: Applied in automobile parts processing workshops, assembly lines and testing equipment, it serves as the core control unit to coordinate the operation of conveying equipment, robots and testing instruments, control processing accuracy and production rhythm, and match Allen-Bradley’s automation solutions in the automotive field.

2. Food and Beverage Industry: Used in food processing and packaging lines, it controls the operation of mixing equipment, packaging machinery and conveying systems, accurately executes production process logic, monitors temperature, pressure and other parameters, ensures the consistency of product quality, and meets food safety production requirements.

3. Petrochemical Industry: Applied in chemical production workshops, pipeline monitoring systems and storage tank control stations, it processes on-site sensor signals, controls the opening and closing of valves and the operation of pumps, adapts to harsh on-site environments (high temperature, high pressure, strong corrosion), and ensures the safe and stable operation of the production process.

4. Water Treatment Industry: Used in water supply and drainage systems, sewage treatment plants, it controls the operation of water pumps, blowers and water treatment equipment, processes water level, flow and water quality signals, ensures the stability of water supply and drainage and the standardization of sewage treatment, and provides data support for process optimization.

5. General Manufacturing Industry: Applied in large-scale production lines, material handling equipment, textile machinery and OEM equipment, it serves as the core control unit, simplifies system configuration, supports integrated motion control, and meets the control needs of medium-scale enterprises for high real-time and high precision.

Usage Instructions

To ensure the long-term stable operation of the 1769-L36ERM controller and the safe and reliable operation of the entire industrial automation system, the following usage instructions should be followed:

1. Installation Requirements: Install the module on a DIN rail or panel, ensure firm installation, and check that the positioning pin is aligned with the chassis to avoid poor contact[3]. The module should be installed in a dry, well-ventilated control cabinet, avoiding direct sunlight, high temperature (above 60℃) and areas with strong vibration, heavy dust or corrosive gas. Keep a certain distance from high-voltage components to avoid electromagnetic interference, and ensure good ventilation around the module to prevent overheating[3][4].

2. Wiring Specifications: Strictly follow the wiring diagram and guidelines, distinguish the positive and negative poles of the power supply and signal lines, and never reverse the connection to avoid short circuit or module damage[4]. Use shielded cables for communication and analog signal wiring, ensure the wiring is firm and the contact is good, and the shielding layer of the cable should be properly grounded to reduce electromagnetic interference. It is strictly prohibited to wire with power on to avoid electrical shock or module damage[3][4].

3. Parameter Configuration and Debugging: Use Allen-Bradley Studio 5000 software to compile and download control programs, configure module parameters (memory allocation, communication parameters, I/O address allocation, motion control parameters) according to project needs[1][7]. Set the IP address of the controller through Bootp, DHCP server or RSLinx software[1]. After configuration, perform offline debugging first to check the logic correctness of the program, then perform online debugging to ensure that the module can accurately process I/O signals and execute control commands. Adjust the program or parameters in time if there is a control error or signal abnormality[1][3].

4. Operation and Maintenance: During daily operation, regularly check the running status of the module (such as power indicator, fault indicator), and monitor the program operation and data communication status through Studio 5000 software to ensure that the module is working normally[3]. Regularly check the wiring for looseness, clean the surface of the module to remove dust and stains (avoid using corrosive cleaning agents), and check the connection status of the chassis and terminal block. Regularly back up the control program and module parameters to an SD card or computer to prevent program or parameter loss due to unexpected faults[1][3]. When a fault occurs, use the fault diagnosis function of the software to locate the fault, and contact professional maintenance personnel for inspection and replacement if necessary[1][6].

5. Safety Precautions: Cut off the power supply of the entire system before installation, disassembly or maintenance to prevent electrical shock or module damage[6]. Do not touch the module pins, terminals or internal components with wet hands or metal tools to avoid short circuit. Avoid collision or impact on the module to prevent physical damage to the enclosure and internal components. In flammable and explosive industrial environments, strictly follow the on-site safety regulations and ensure that the module is used in a safe environment to prevent safety accidents[6]. Do not overload the module or modify the internal circuit to avoid component damage or system failure. Only trained personnel can perform installation, configuration and maintenance operations[6].
