Description

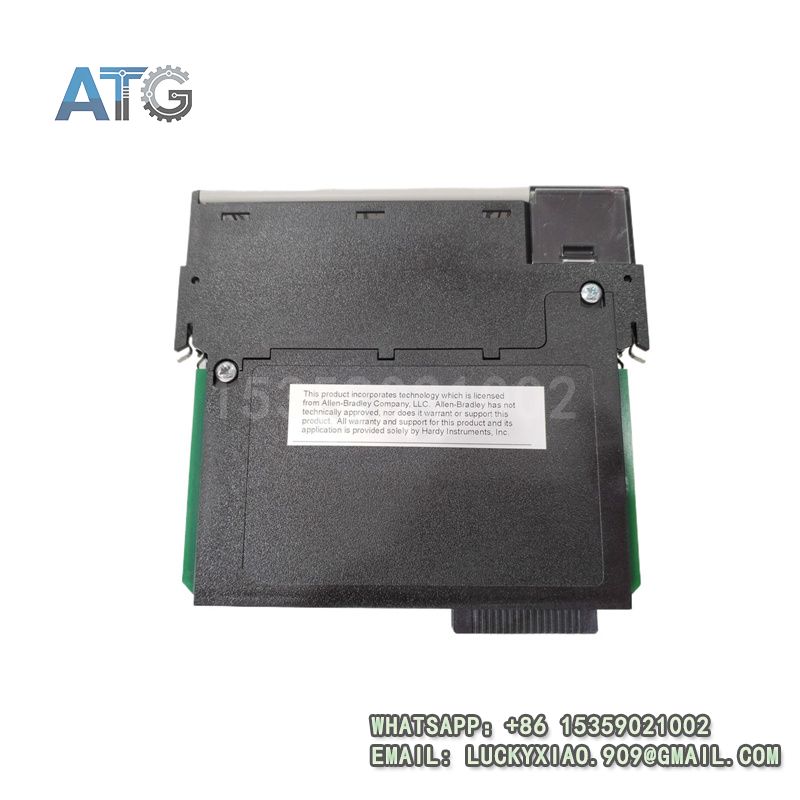

1756-2WS Allen-Bradley Product Introduction
- Model: 1756-2WS
- Brand: Allen-Bradley (Rockwell Automation)
- Series: Allen-Bradley 1756 ControlLogix Series
- Core Function: 2-channel analog input module for industrial control
- Type: Analog Input Module
- Key Specs: 2 channels, 16-bit resolution, 4-20mA input
- Supply Status: In Stock
- Stock: 15
- Warranty: 1 year
- Ship From: China
1756-2WS
Product System Function Introduction
The 1756-2WS is a high-precision analog input module belonging to Allen-Bradley’s 1756 ControlLogix Series, a core component for industrial automation control systems. It is designed to collect and convert analog signals (such as 4-20mA current signals) from industrial sensors into digital signals, which are then transmitted to the ControlLogix CPU for data processing and control decision-making. The module features high resolution, stable performance and strong anti-interference ability, ensuring accurate and real-time signal acquisition in harsh industrial environments. It is fully compatible with the 1756 ControlLogix chassis, supporting seamless integration with other modules in the same series to form a complete automation control system, which can effectively improve the intelligence and stability of industrial production processes.
1756-2WS
Application Industries
The 1756-2WS is widely applied in various industrial fields that require high-precision analog signal acquisition, including: chemical industry (process control and monitoring), textile industry (production process information collection), food and beverage industry (production parameter control), automotive manufacturing (assembly line monitoring), and medical equipment supporting (disinfection supply system signal acquisition). It is especially suitable for scenarios that need to collect analog signals from sensors (such as temperature, pressure, flow sensors) and realize real-time monitoring and control of production processes.
1756-2WS
Usage Instructions
- Install the module into the 1756 ControlLogix chassis, ensuring firm connection with the backplane.
- Connect the analog sensor signal lines to the module’s input terminals, following the positive and negative polarity requirements.
- Configure the module parameters (channel type, input range) via RSLogix 5000 software to match the sensor signals.
- Power on the system after wiring and configuration, and check whether the signal acquisition is normal.
- Cut off the power supply before installation, disassembly or wiring to avoid electrical damage or personal injury.
- Regularly check the module’s wiring and working status to ensure stable and reliable operation.
