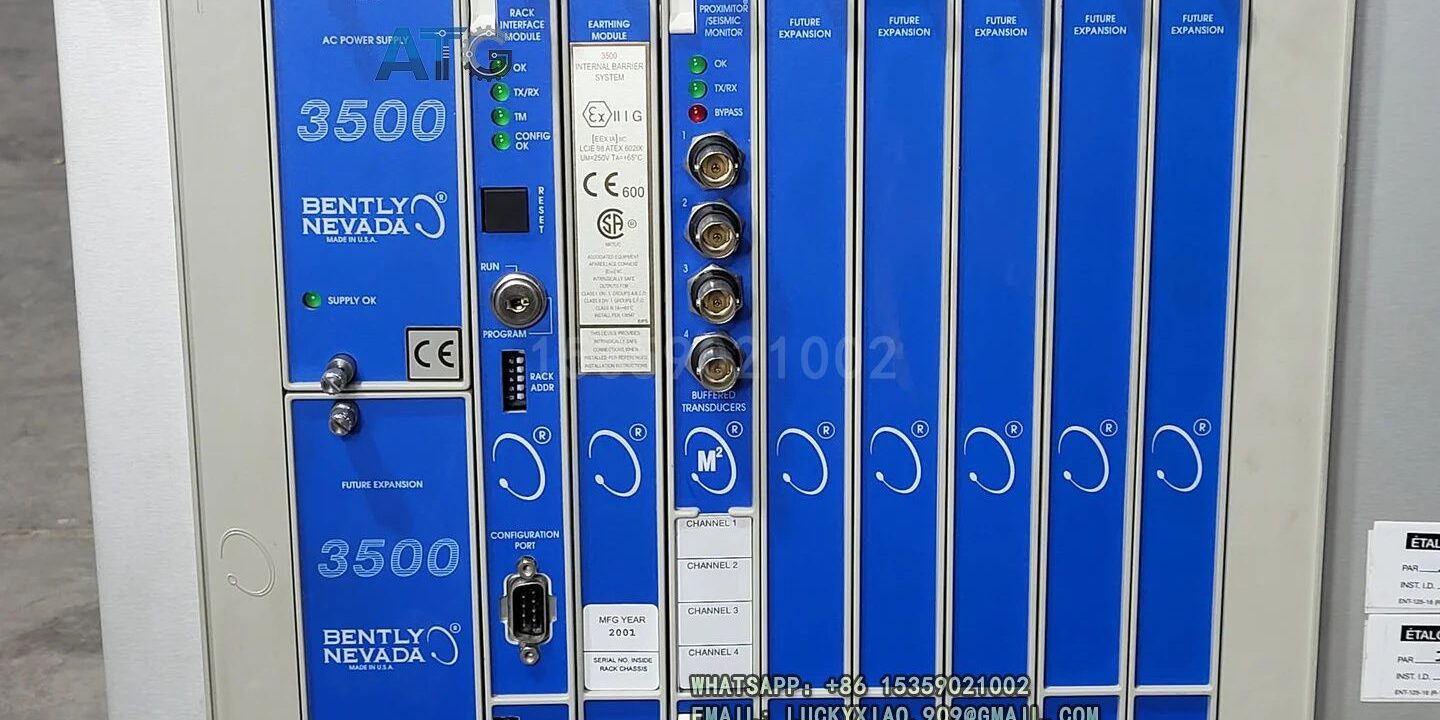

Bently Nevada 3500 System: Detailed Description
The Bently Nevada 3500 is a modular, highly reliable machinery protection and condition monitoring system developed by Bently Nevada (a Baker Hughes business). It complies with the API 670 standard and is designed to provide real-time monitoring, alarm management, and safety shutdown protection for critical rotating machinery such as steam turbines, compressors, generators, and more.
1. System Positioning & Core Value
- Core Positioning: An online machinery protection system for critical industrial rotating equipment, meeting API 670 standards for continuous monitoring and safety interlocking of vibration, displacement, speed, temperature, and other parameters.
- Core Value:
- Safety Protection: Real-time monitoring with immediate alarm/shutdown upon over-limit conditions to prevent catastrophic equipment failure.
- Condition Monitoring: Provides waveform, spectrum, trend, and other data to support fault diagnosis and predictive maintenance.
- High-Reliability Redundancy: Supports TMR (Triple Modular Redundancy), redundant power/interface modules, and strong fault tolerance.
- Open Integration: Compatible with various sensors and supports Modbus, EtherNet/IP, Profibus, etc., for seamless integration with DCS/PLC/System 1 software.
2. System Architecture (Modular Chassis Design)
2.1 Chassis
- Standard: 19-inch 14-slot EIA rack; optional 12-inch 7-slot mini-chassis.
- Function: Physical carrier for all modules, providing backplane bus and power distribution.
2.2 Core Modules
- Power Supply Module (3500/15)
Supplies system power with 1+1 redundancy to ensure uninterrupted operation.
- Rack Interface Module (TDI, e.g., 3500/22M)
The “brain” of the system: responsible for configuration, data acquisition, communication, and alarm logic.
Built-in Ethernet for direct connection to System 1 diagnostic software without extra DAQ hardware.
Stores event logs: 2000 alarms and 1000 system events with timestamps.
- Monitor Modules
The core of signal processing, with each module dedicated to one measurement type:
- Vibration Monitoring (3500/40M/42M): Shaft vibration, casing vibration, velocity/acceleration monitoring.
- Displacement Monitoring (3500/50M): Axial position, differential expansion, eccentricity, keyphasor.
- Speed Monitoring (3500/53M): Zero speed, overspeed, reverse rotation protection.
- Temperature Monitoring (3500/60M): RTD, thermocouple, multi-channel support.
- Reciprocating Machinery Special (3500/72M): Piston rod drop, pressure pulsation, etc.
- Relay Module (3500/32M)
Outputs alarm/shutdown contacts, supporting redundancy and voting logic (e.g., 2oo3).
- Display Modules
Optional: Local VGA touchscreen, rack-mounted LCD, remote workstation display.
2.3 Sensors & Proximitors
- Compatible with Bently Nevada eddy current probes, velocity/acceleration sensors, RTDs, thermocouples, etc.
- Signal Conditioning: Proximitors (e.g., 3300 series) convert probe signals to voltage/current for system input.
2.4 Configuration Software
- BN Configurator: For module setup, alarm thresholds, logic programming, and redundancy settings.
- System 1: Advanced diagnostic software for trend analysis, spectrum, orbit plots, and fault diagnostics.
3. Key Technical Features
- High Reliability & Redundancy
- Supports TMR (Triple Modular Redundancy): 2-out-of-3 voting to avoid false or missed trips.
- Redundant power, TDI, and relay modules; single-point failures do not compromise protection.
- Dual non-volatile memory for configuration to prevent data loss.
- Security & Administration
- Two-level password protection + key lock to prevent unauthorized configuration/alarm changes.
- All configuration changes logged for audit and change management compliance.
- Real-Time Performance & Precision
- Protection logic executed via onboard hardware with millisecond-level response.
- Channel synchronization <10 μs, meeting API 670 high-precision requirements.
- Flexible Expansion & Integration
- Modular design for customized monitoring types and channel counts.
- Multi-protocol communication: Modbus, EtherNet/IP, Profibus, RS‑232/422.
- Local/remote installation with NEMA 4/4X enclosure support.
4. Typical Applications
- Power Generation: Turbo-generator sets, gas turbines, hydro turbines, large fans/pumps.
- Oil & Gas: Centrifugal/reciprocating compressors, pumps, gas turbines, offshore platform equipment.
- Chemical & Metallurgical: Large compressors, blowers, reactors, rolling mills, motors.
- Others: Air separation, papermaking, marine power, and other critical rotating equipment.
5. Comparison: 3300 System vs. 3500 System
| Feature | 3300 System | 3500 System |
|---|---|---|
| Architecture | Analog-digital hybrid | Fully digital, modular chassis |
| Redundancy | Limited redundancy | Full redundancy (TMR, power, TDI) |
| Communication | Serial-dominant | Built-in Ethernet, direct System 1 connection |
| Diagnostics | Basic trending | Rich waveforms/spectra/orbits, advanced diagnostics |
| Standard | Early API 670 | Fully compliant with latest API 670 |
| Scalability | Low | Extremely high, flexible configuration |
6. Summary
The Bently Nevada 3500 is a benchmark platform for industrial rotating machinery protection. Centered on high reliability, full redundancy, modularity, and easy integration, it strictly adheres to API 670 and is widely used in power, petrochemical, chemical, and other industries. It serves as a core system for ensuring critical equipment safety and enabling predictive maintenance.
